ZDSF210 High Speed Woodworking Automatic Portable Edge Bander Furniture Cabinet Wood Board MDF PVC Edge Banding Machine Price
Contact Us| model number | ZDSF210 |
|---|
Description
Products Disply

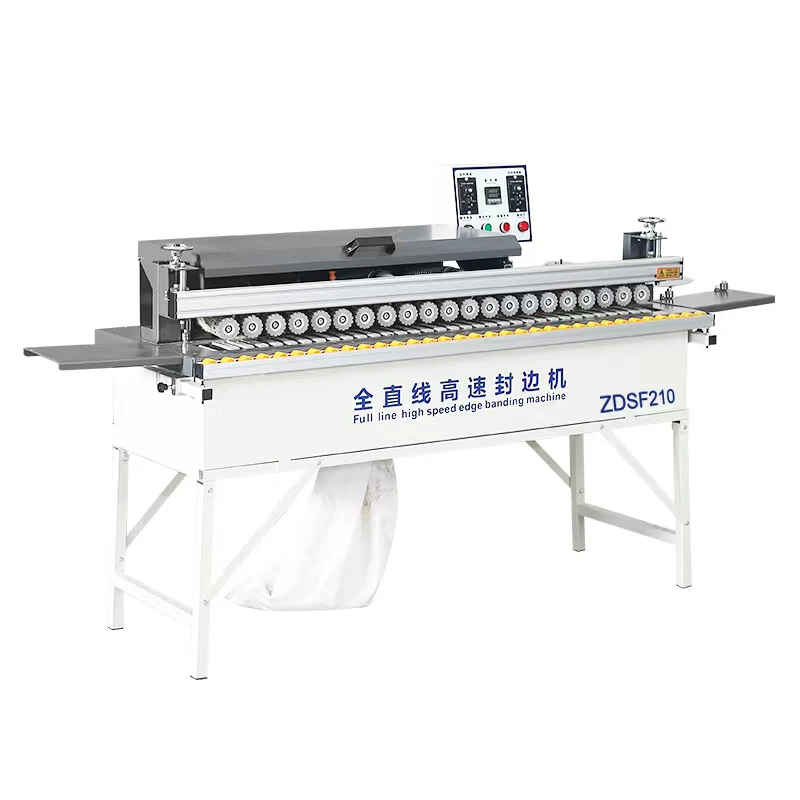

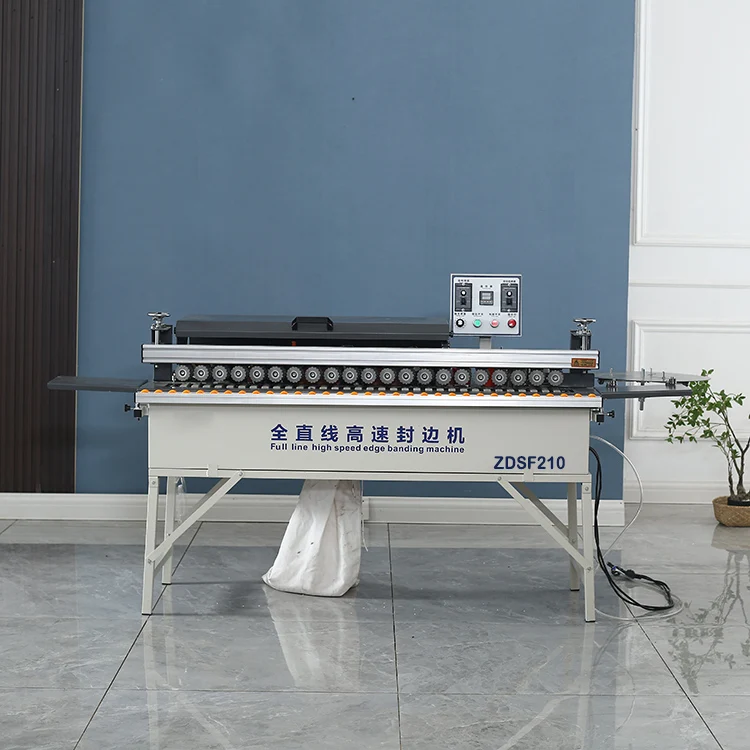

Miniature Fully Automatic Straight Line Edge Banding Machine
1. It adopts an integrated all-aluminum pressure beam. a rotating hand crank design. and precise scales on both sides for easy adjustment.2. Double rows of inner inclined pressure rollers. the grip plate is stable and does not deviate.3. Frame structure. strong track. good stability.4. Trimming device. dual high-speed motors adopt precision guide rail sliders to lift up and down. parallel up and down. four-edged 1.5 alloy trimming knife. profiling trimming.5. Profile scraping for smoother edges.6. Clean up and down the board to remove excess glue lines.7. Large diameter closed dust collector. good dust collection effect.This edge banding machine can seal large boards and small boards. and the boards can be fed continuously and stably.
Product Paramenters
Model | ZDS210 |
Function | Automatic plate feeding Double-sided gluing Upper and lower polishing Automatic trimming Wood cleaning system up and down |
Edge type | straight lines |
Voltage | 220v50hz |
Rated power | 4kw |
Rated air pressure | 0.4-0.6mpa |
Suction | 1200w |
Belt power | 25w |
Transmission power | 120w |
Heating power | 800w |
Polishing power | 180w*2 |
Trimming power | 800w*2 |
Conveyer belt | 0-14m/min |
Feed plate | 0-14m/min |
Sheet thickness | 10-50mm |
Strip thickness | 0.5-2.5mm |
Glue capacity | 1000ml |
Overall size | 2100*570*1120mm |
Packing size | 157*60*69cm |
Weight | 140kg |
Product details
Control panel. multi-function button operation. save worry and effort.

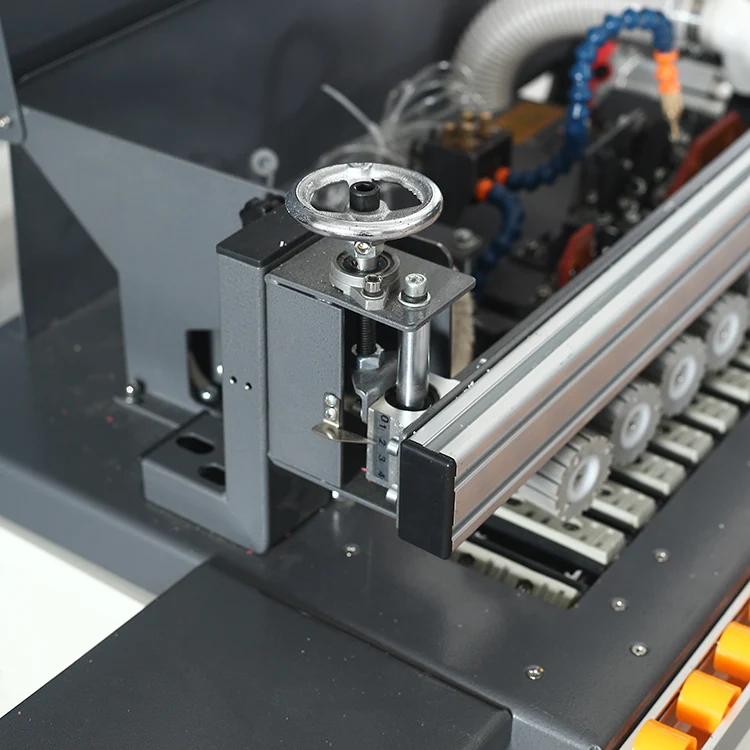

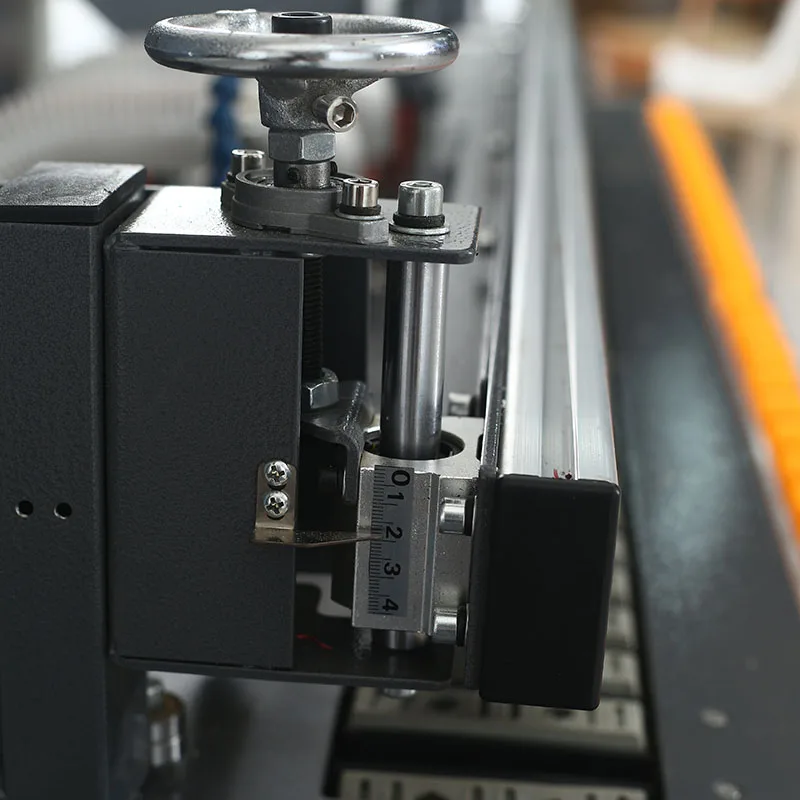

The aluminum alloy pressure beam can be adjusted. and the plate conveying is more stable.
The elastic pressing device makes the bonding between the edge band and the board more firm.

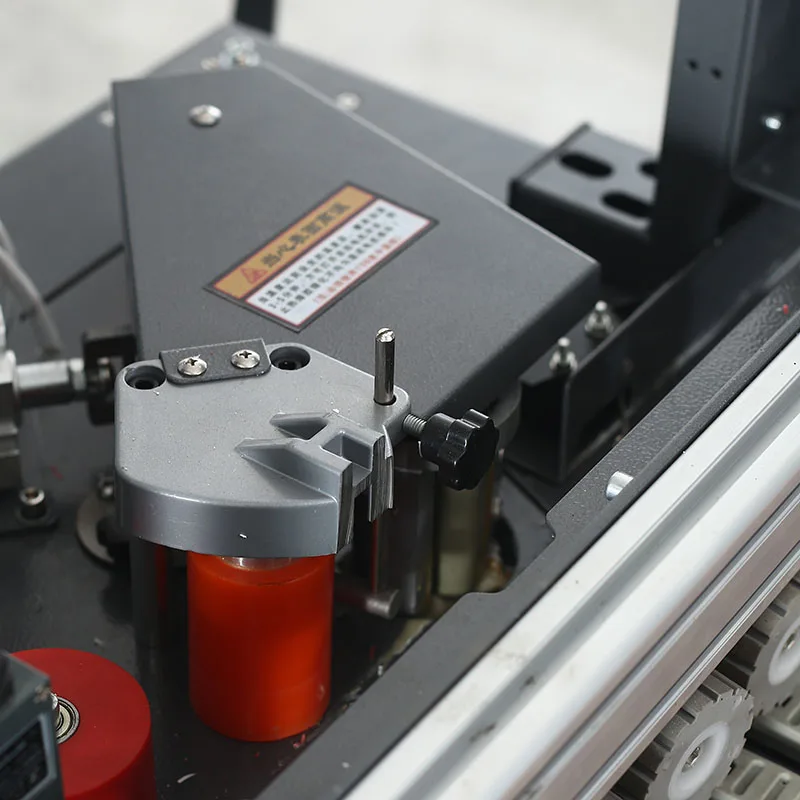

Pneumatically controlled edge strip cutting device makes work easier.

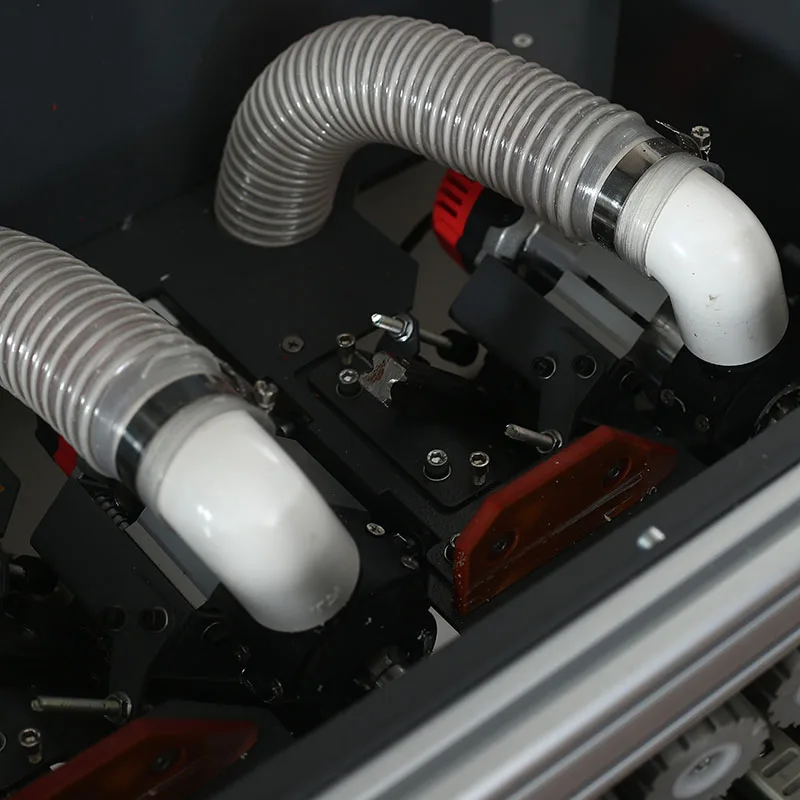

2 high-speed trimming motors. combined with a large-diameter vacuum device. trims the edges beautifully and cleanly.
Plate up and down cleaning device + edge scraping device.
Glue roller. adjustable glue volume.
Push-type limit switch. precise control.
Extended feed plate. more convenient to use.
4-edge arc-shaped alloy cutter head. the arc-shaped trimming is more beautiful.
Polishing device. cross polishing up and down.
Comes with a tray for edge banding.
