JT160 Wood Cutting Table Saw Woodworking Portable Folding Panel Saw 45/90 Degree Wood Cutting Machine
Contact Us| model number | JT160, JT160PRO |
|---|
Description
Products Description

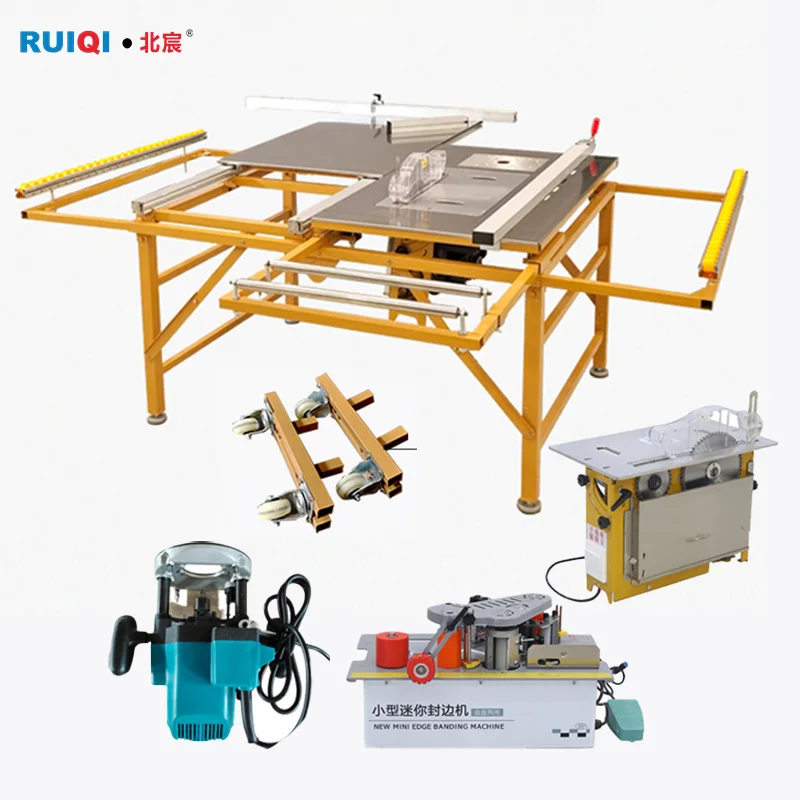

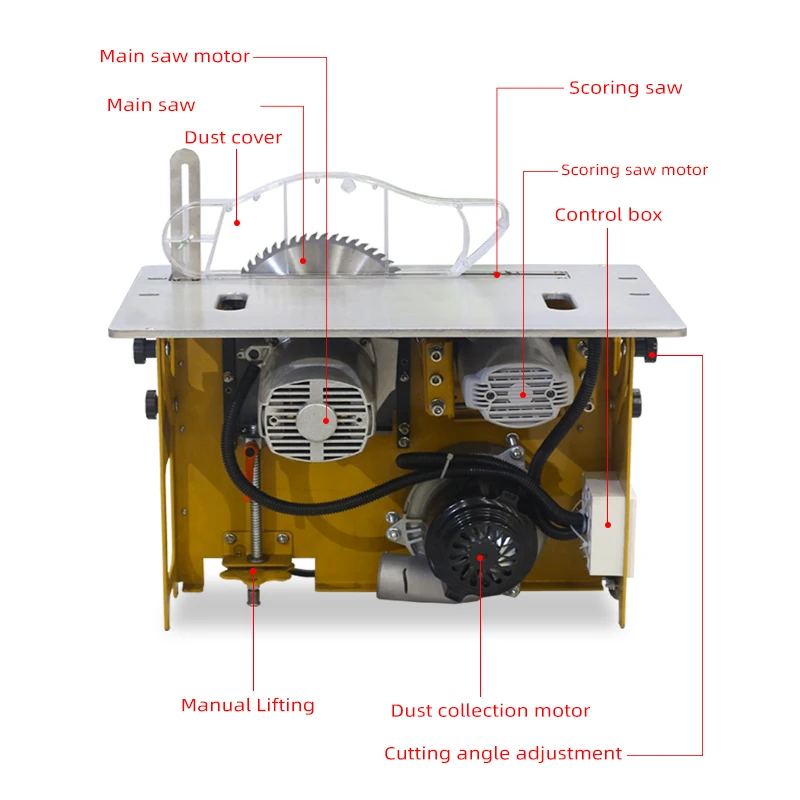

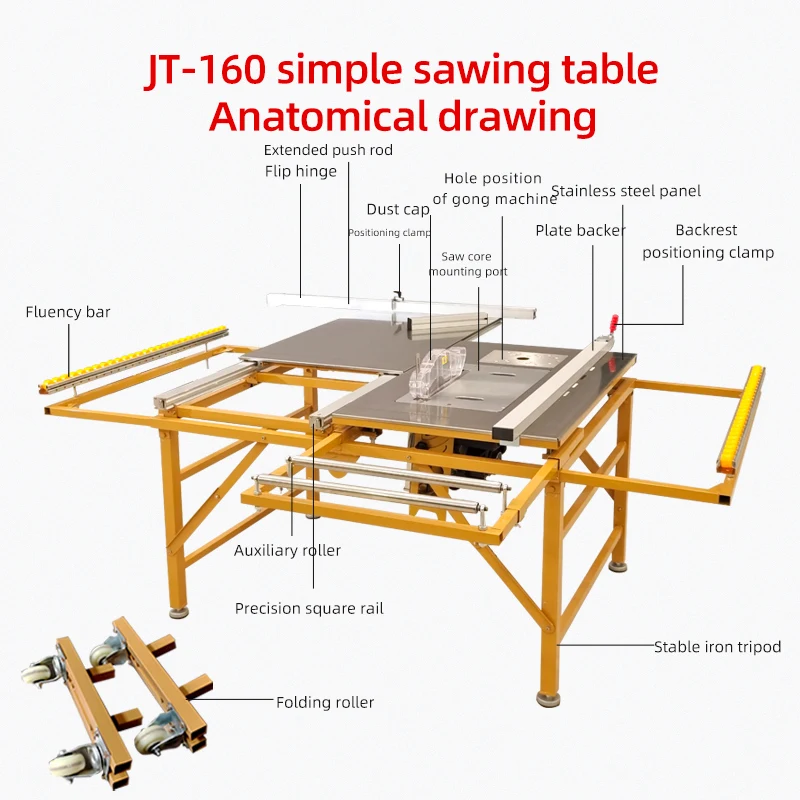

JT160 wood cutting table saw woodworking portable folding panel saw 45/90 degree wood cutting machine
1. High efficiency:Aluminum alloy flip plate. no adjustment 45/90 degrees. independent switch. with aluminum alloy chip integrated
sub and master saw. good dust absorption effect. 2. Dust protection cover:The protective cover can provide safety protection and
prevent dust from flying out of the table.
3. Imported bearing high power low energy consumption:Copper wire motor. surging power. stable motor. ensure work efficiency.
4. Arbitrary adjustment:Aluminum alloy flip-flop board. the flip-flop board can be mitered. the saw blade can be adjusted(size).
sub and master saw. good dust absorption effect. 2. Dust protection cover:The protective cover can provide safety protection and
prevent dust from flying out of the table.
3. Imported bearing high power low energy consumption:Copper wire motor. surging power. stable motor. ensure work efficiency.
4. Arbitrary adjustment:Aluminum alloy flip-flop board. the flip-flop board can be mitered. the saw blade can be adjusted(size).
Product Paramenters
Model | JT160 |
J2 Non dust Male and Female Saw | |
Total power | 6200W |
Maximum plank cutting length and thickness | 2.44M.4CM |
Main saw power and speed | 3000W.3800r/min |
Main saw diameter | 20CM |
Sub saw power and speed | 2000W.13000r/min |
Vacuum cleaner power | 1200W |
Product weight | 55KG+22KG |
Track width. length | 8CM.100CM .double track |
Product Size | Folded size of saw table 100*72*30CM Expanded size of saw table250*205*75CM Male and Female Sawsize50*30*38CM |
Package Size | Saw table wooden box 137*97*95CM (heightened bottom corner Male and Female Saw wooden case 57*37*45CM(Elevated bottom corner) |
Model | JT160 PRO | ||||||||

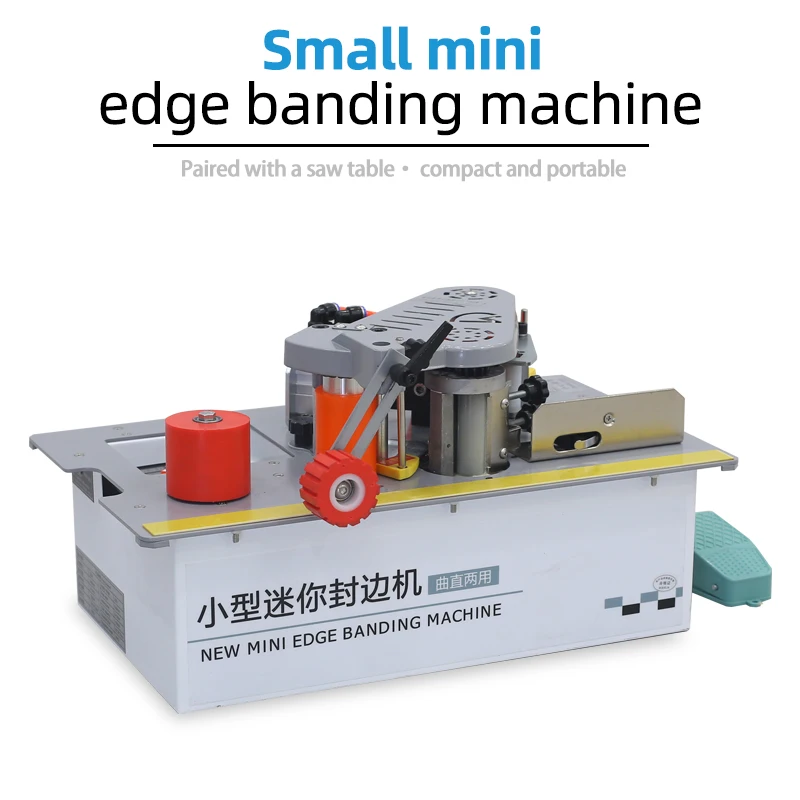

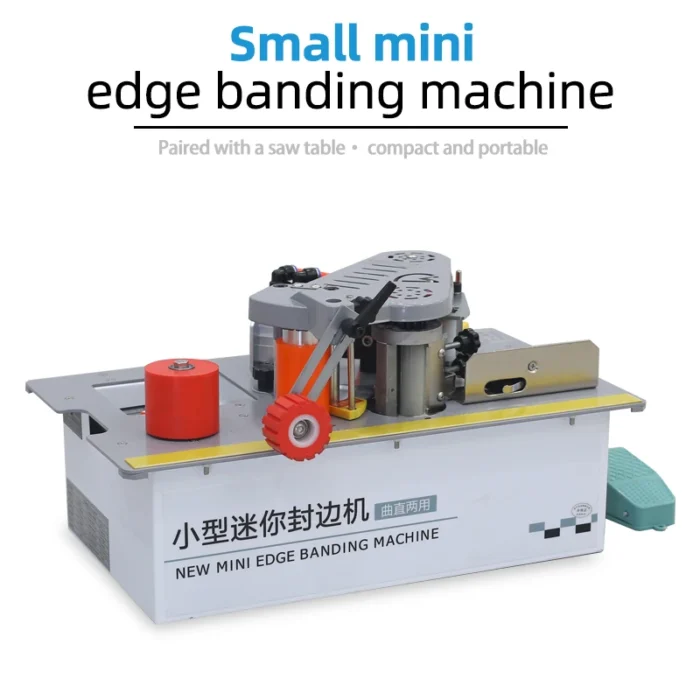

Equipped with J2 Dust-free Male and Female Saw+Saw Table Edge Banding Machine | |||||||||
Total power | Male and Female Saw Power 6200W | Edge banding machine power 1000W | |||||||
Maximum plank cutting length and thickness | 2.44M.4CM | Standard features | Curved and straight edge banding. manual push plate | Voltage | 220V/380V/ customization | ||||
Main saw power and speed | 3000W.3800r/min | Minimum length of sheet | 25CM | Minimum width of sheet | 5CM | ||||
Main saw diameter | 20CM | Edge banding height | 0-50MM | Edge banding thickness | 0.3-3MM | ||||
Sub saw power and speed | 2000W.13000r/min | Edge power/speed | 20W | Air source pressure | 0.5-0.8Mpa | ||||
Vacuum cleaner power | 1200W | Glue pot capacity | 1000ml | ||||||
Product weight | 55KG+22KG+15KG | ||||||||
Track width. length | 8CM.100CM .double track | ||||||||
Product Size | folding saw table size100*72*30CM Saw table unfoldedsize250*205*75CM Male and Female Sawsize50*30*38CM Banding Machine size54*35*33CM | ||||||||
Package Size | Saw table wooden box 137*97*95CM (heightened bottom corner Male and Female Saw wooden box 57*37*45CM (heightened bottom corner) edge banding machine size carton 54*35*33CM | ||||||||
Why Choose Us
Our company is a source enterprise specializing in the production and exportof woodworking machinery products. The main products are edge bandingmachine. slotting machine. woodworking saw table and other auxiliary products.Our products are widely sold in China and exported to Europe. North America.Southeast Asia. Russia and other countries and regions. and are wellreceived by customers.
FAQ
Q1.Are you a trade company or a manufacturer ?We are manufacturer in Dezhou city. Shandong province of China.
We can offer competitive price of machine with high quality.Q2:Can I choose the Plug?Yes.we have EU.USA.AU.UK plug for your country useQ3:Is it OK to print my logo on the product?Yes.Please inform us formally before our production and confirm the design firstly for the mass production.Q4.I do not know Chinese.will the operation panel in English or French or other?Yes.all our machine are with Chinese and English.If you want only English or Spanish or other.we also can customize to youQ5:It is my first time to purchase goods from china.how do i do? Do not worry.Bei chen has 10 years export experience to all over the world.also has professional sales team.We have exported to Russia. Pakistan. Algeria. Vietnam. Peru and many other countries.Q6:How to pack the machine? We use wooden box to packge the machine to protect them to be safe.Q7.What to do if l have any other specifications for the current?lf you have any different requirements.just contact us and we will meet you.Q8.lf I need a sample for pretest. do you sale sample for this inquiry ?Yes. we can sale sample for pretest. lf you need this service. please contact us and we will giveyou a quotation.Q9.Can you produce the products according to my own drawings?Yes. we can do OEM according to your requirement
