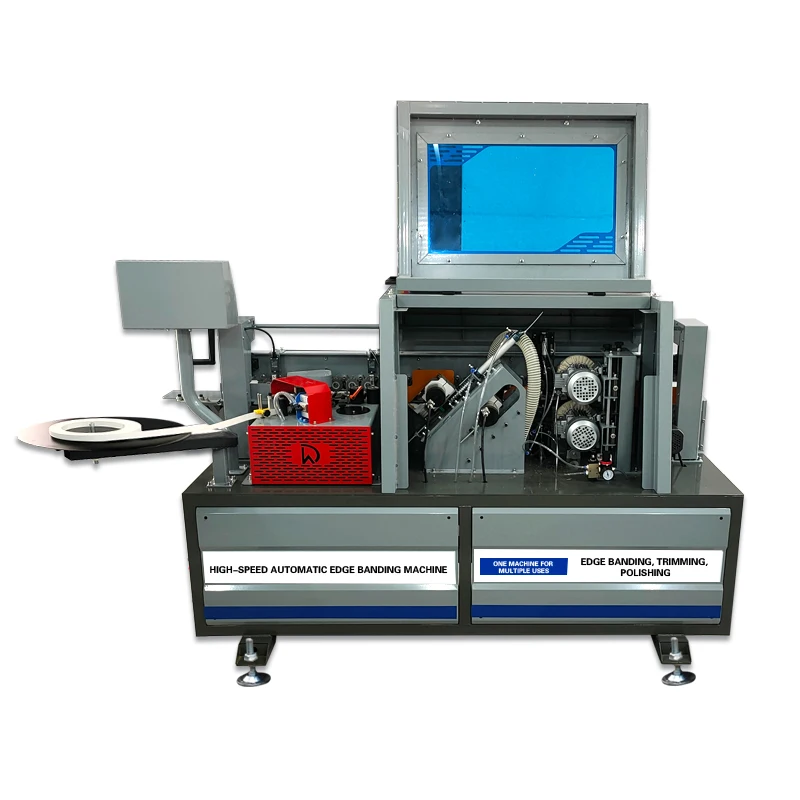

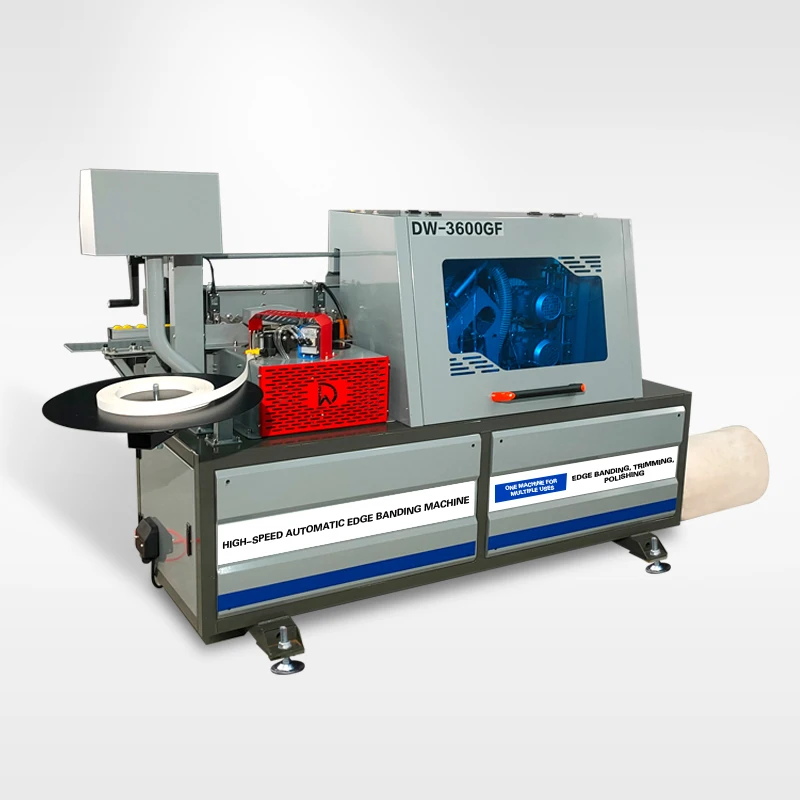

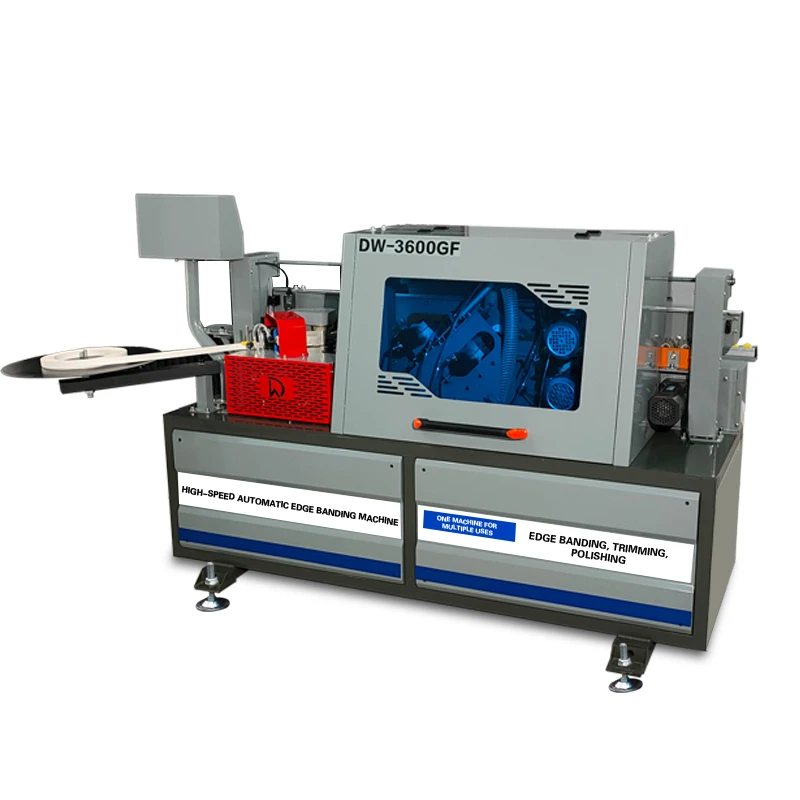

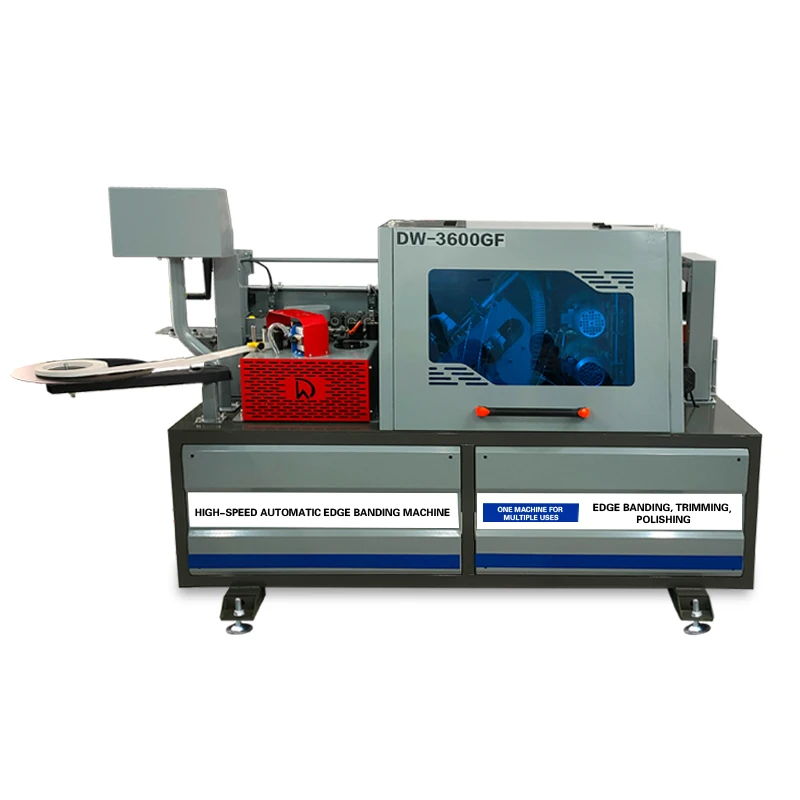

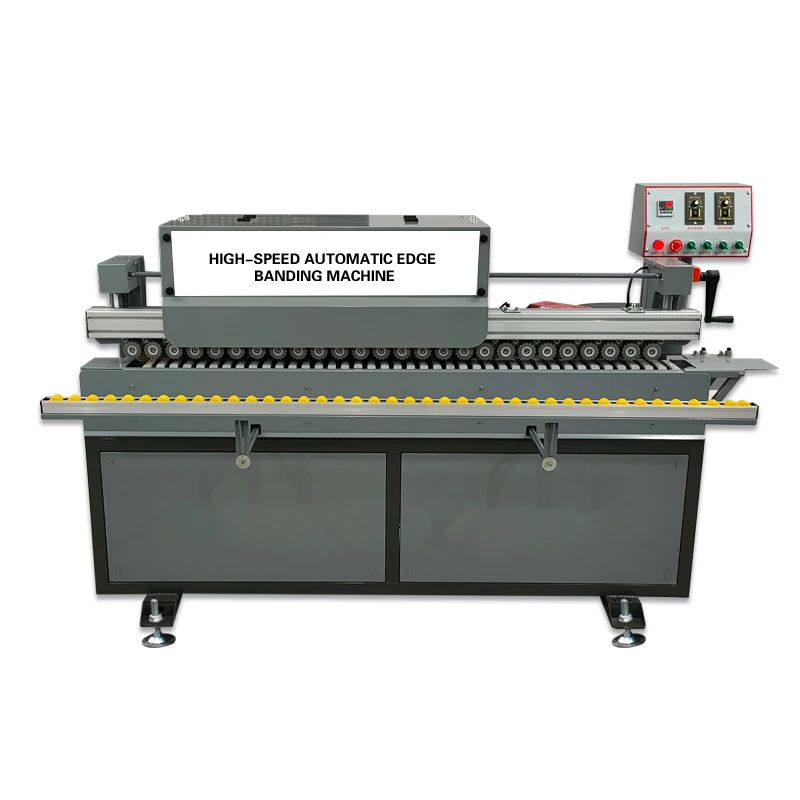

DW3600 High-speed Automatic Edge Banding Machine Double-sided Trimming Polishing Pre-milling High-quality Multi-functional

Wood Based Panels Machinery Woodworking Machinery

DW3600 High-speed Automatic Edge Banding Machine Double-sided Trimming Polishing Pre-milling High-quality Multi-functional

This product is currently out of stock and unavailable. SKU: DW3600 High-speed Automatic Edge Banding M-36309889 Categories: Wood Based Panels Machinery, Woodworking Machinery Description Additional information Description Products Description Product Paramenters VOLTAGE :380V THREE-PHASE FOUR-WIREPRODUCT NUMBER: DW-3600GFEQUIPMENT SIZE:2200*650*1250mmTOTAL POWER:4.9KWEDGE BANDING TYPE: STRAIGHT EDGE BANDINGTOTAL WEIGHT: 320KGEDGE BAND HEIGHT :0-50MMEDGE BAND THICKNESS: 0.3-3MMMINIMUM LENGTH OF PLATE: […]

Quality

Certified

Shipping

Worldwide

Support

24/7 Service

Delivery

Fast Lead Time

Get a Quote Contact Us

Products Description

Product Paramenters

VOLTAGE :380V THREE-PHASE FOUR-WIRE	PRODUCT NUMBER: DW-3600GF
EQUIPMENT SIZE:22006501250mm	TOTAL POWER:4.9KW
EDGE BANDING TYPE: STRAIGHT EDGE BANDING	TOTAL WEIGHT: 320KG
EDGE BAND HEIGHT :0-50MM	EDGE BAND THICKNESS: 0.3-3MM
MINIMUM LENGTH OF PLATE: 200MM
EDGE BANDING POWER I SPEED: 160W0-14m/min
TRANSMISSION POWER ISPEED: 180W0-14m/min
TRIMMING POWERISPEED: 800W*2 24000r/min
POLISHING POWER /SPEED: 400W*2
EQUIPMENT AIR PRESSURE: 0.4-0.6mpa
STANDARD FUNCTIONS: GLUING.TRIMMING.TRIMMING.FRONT AND REAR .SCRAPING.POLISHING .VACUUMING

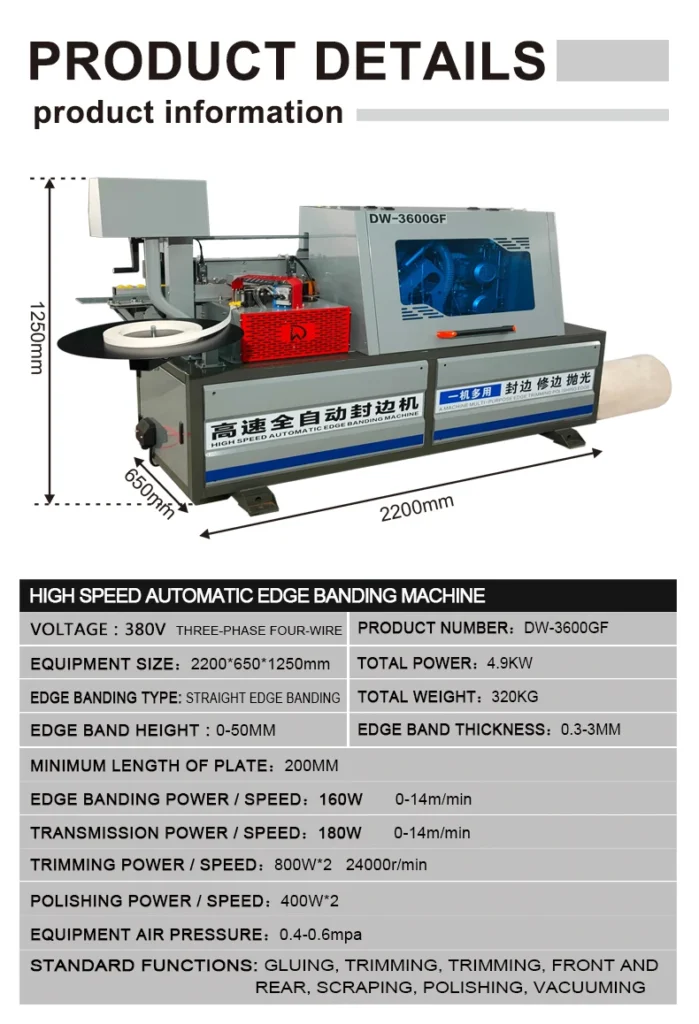

Product Details

Details Images

Why Choose Us

Our company is a source enterprise specializing in the production and exportof woodworking machinery products. The main products are edge bandingmachine. slotting machine. woodworking saw table and other auxiliary products.Our products are widely sold in China and exported to Europe. North America.Southeast Asia. Russia and other countries and regions. and are wellreceived by customers.

FAQ

Q1.Are you a trade company or a manufacturer ?We are manufacturer in Dezhou city. Shandong province of China.

We can offer competitive price of machine with high quality.Q2:Can I choose the Plug?Yes.we have EU.USA.AU.UK plug for your country useQ3:Is it OK to print my logo on the product?Yes.Please inform us formally before our production and confirm the design firstly for the mass production.Q4.I do not know Chinese.will the operation panel in English or French or other?Yes.all our machine are with Chinese and English.If you want only English or Spanish or other.we also can customize to youQ5:It is my first time to purchase goods from china.how do i do? Do not worry.Bei chen has 10 years export experience to all over the world.also has professional sales team.We have exported to Russia. Pakistan. Algeria. Vietnam. Peru and many other countries.Q6:How to pack the machine? We use wooden box to packge the machine to protect them to be safe.Q7.What to do if l have any other specifications for the current?lf you have any different requirements.just contact us and we will meet you.Q8.lf I need a sample for pretest. do you sale sample for this inquiry ?Yes. we can sale sample for pretest. lf you need this service. please contact us and we will giveyou a quotation.Q9.Can you produce the products according to my own drawings?Yes. we can do OEM according to your requirement
