Full Automatic Board Edger Machine Edge Banding Machine 8 Function for Wood
This product is currently out of stock and unavailable. SKU: Full Automatic Board Edger Machine Edge Ba-36310756 Categories: Wood Based Panels Machinery, Woodworking Machinery Description Additional information Description Product Parameters ModelZDS280DThe main functionGluing. End trimming. Fine trimming. Scraping. BuffingWorking pressure0.6MpaPanel thickness10-60mmEdge thickness0.4-3mmConveyor belt speed16m/minMin. panel width60mmMin. panel length150mmVoltage380V-3HPPower7.5kwWeight700kgDimensions3100*700*1400mmOur ServiceWe can provide you with various custom […]
Quality
Certified
Shipping
Worldwide
Support
24/7 Service
Delivery
Fast Lead Time
Product Parameters
Model | ZDS280D |
The main function | Gluing. End trimming. Fine trimming. Scraping. Buffing |
Working pressure | 0.6Mpa |
Panel thickness | 10-60mm |
Edge thickness | 0.4-3mm |
Conveyor belt speed | 16m/min |
Min. panel width | 60mm |
Min. panel length | 150mm |
Voltage | 380V-3HP |
Power | 7.5kw |
Weight | 700kg |
Dimensions | 3100*700*1400mm |
Our Service | We can provide you with various custom services |
Products Disply
1. The machine body adopts 14mm national standard high-strength steel plate table. frame-type fuselage structure. which is durable and not easy to deform after high-temperature quenching treatment.2. The guide rail of the conveyor belt is made of HT260 material. and the conveying speed is stable.3. The conveying motor adopts a customized Taiwan brand. with stable power output. and the thermal protection system improves the safety factor.4. All high-speed motors are well-known and reliable brands. which are efficient and stable.5. The head guide rail adopts Taiwan brand. which is stable. durable and has high precision.6. Pneumatic system. German Festo or Taiwan AirTAC brand cylinder and safety valve. high-sensitivity AirTAC magnetic switch!7. Electrical appliances and operating systems: Delixi/Chint: air switches. contactors. Japanese Omron travel switches.
Product details
Control Panel
Gluing and pressing device

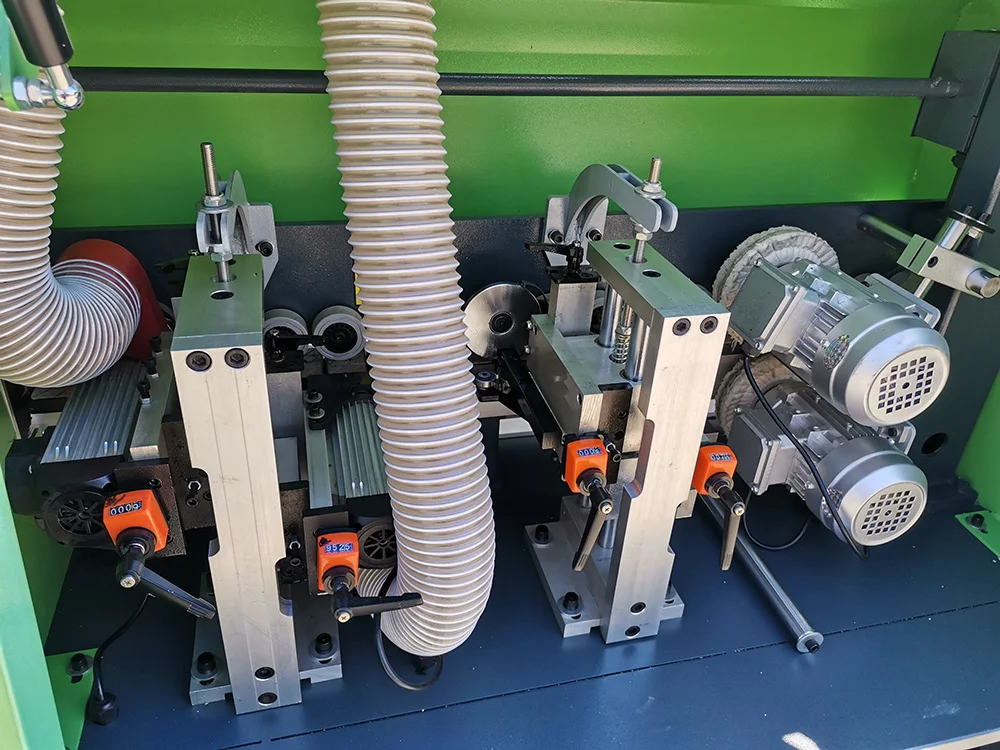

Fine trimming & Scraping & Buffing
End trimming
