Woodworking Edge Bander Board Small Portable Automatic PVC Edge Banding Machine for Furniture
Contact Us| model number | ZDSF910H |
|---|
Description
Product Description

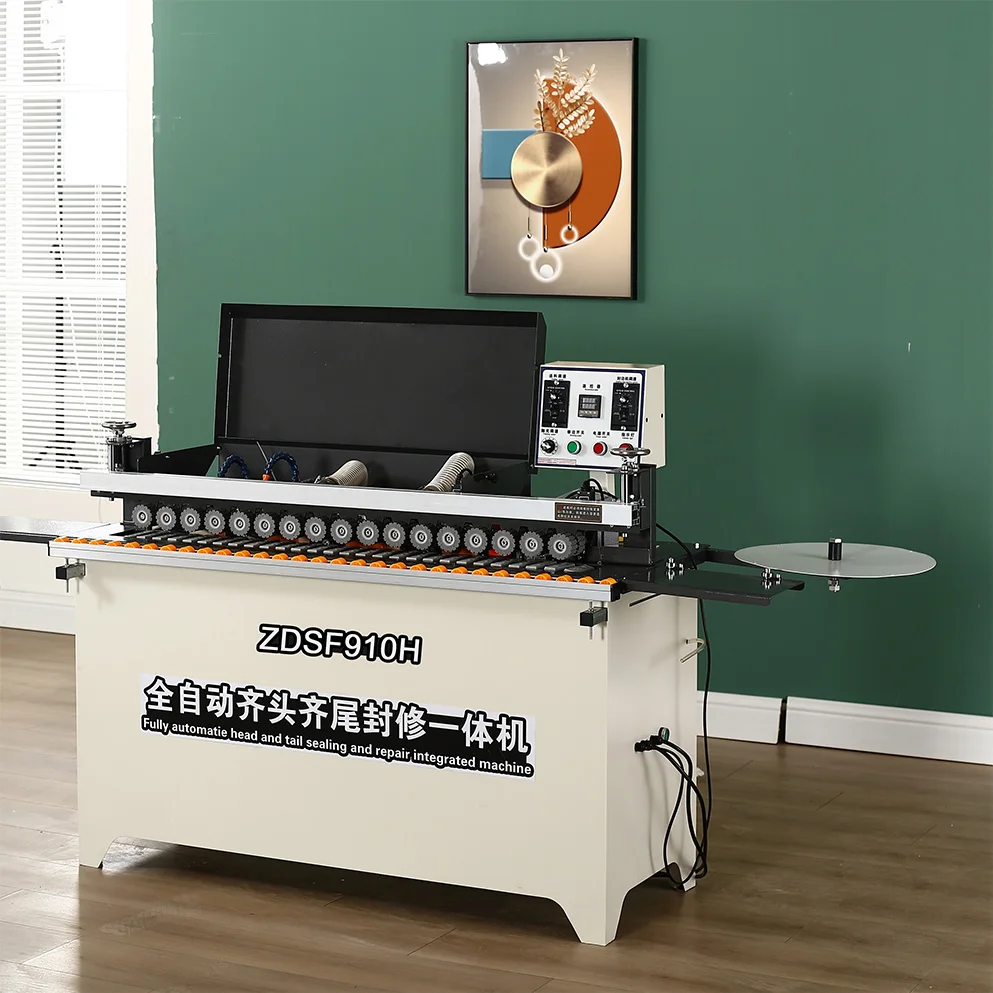

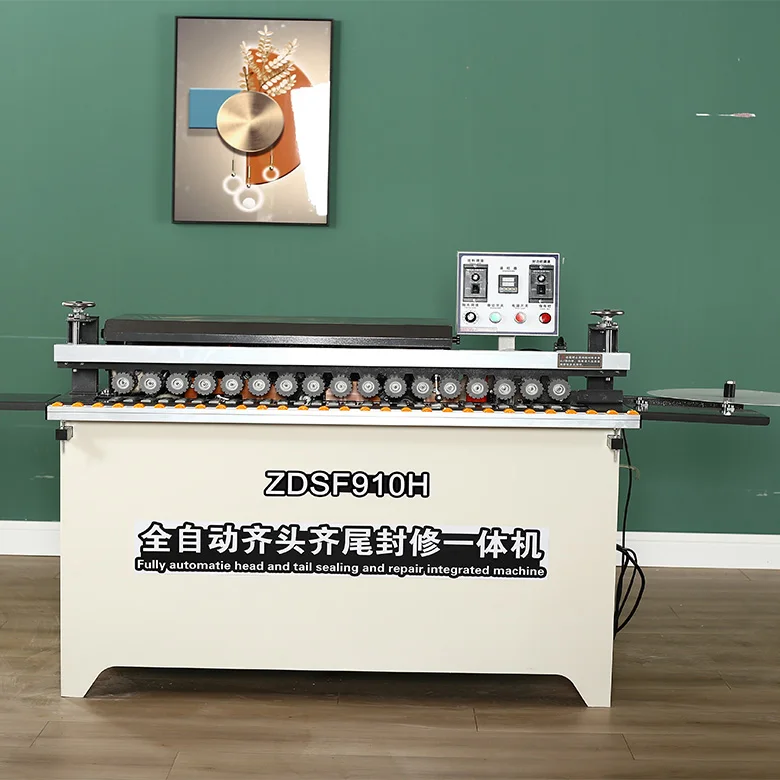

ZDSF910H Fully Automatic Edge Banding Machine
ZDSF910H fully automatic edge banding machine has the function of automatic head and tail. and comes with a vacuum cleaner. The use of square slide rail realizes profiling and trimming. and the use of imported brand 4-blade alloy arc knife to trim the plate effect arc shape. automatic end cutting. use two big diameter dust collectors. close fit. collecting effect can reach 99%. For crawler transmission. we use steel rod slide rails. which is more stable in delivery. and the real materials can be seen!Minimum board width for edge sealing 2.5cm.
Banding Effect
Features: 1. Automatic board feeding 2. Double-sided gluing 3. Up and down trimming and polishing 4. Automatic end trimming 5. Fully automatic edge banding
6. Full-envelope vacuuming. collecting effect can reach 99%
7. Use steel rod slide rails. more stable in delivery
8. Minimum board width for edge sealing 2.5 cm
9. With cleaning glue line function
Specification
Model | ZDSF910H Fully Automatic Edge Banding Machine |
Function | Automatic plate feeding. Double-sided gluing. End cutting. Upper and lower polishing. Automatic head and tail trimming. Comes with dust collector. Min edge sealing 2.5 cm |
Voltage | 220v50hz |
Rated power | 4kw |
Rated air pressure | 0.4-0.6mpa |
Suction | 1200w |
Belt power | 25w |
Transmission power | 120w |
Heating power | 800w |
Polishing power | 180w*2 |
Trimming power | 800w*2 |
Sheet thickness | 10-50mm |
Strip thickness | 0.5-2.5mm |
Glue capacity | 1000ml |
Overall size | 1300*560*1090mm |
Packing size | 138*58*120cm |
Weight | 185kg |
Details Images

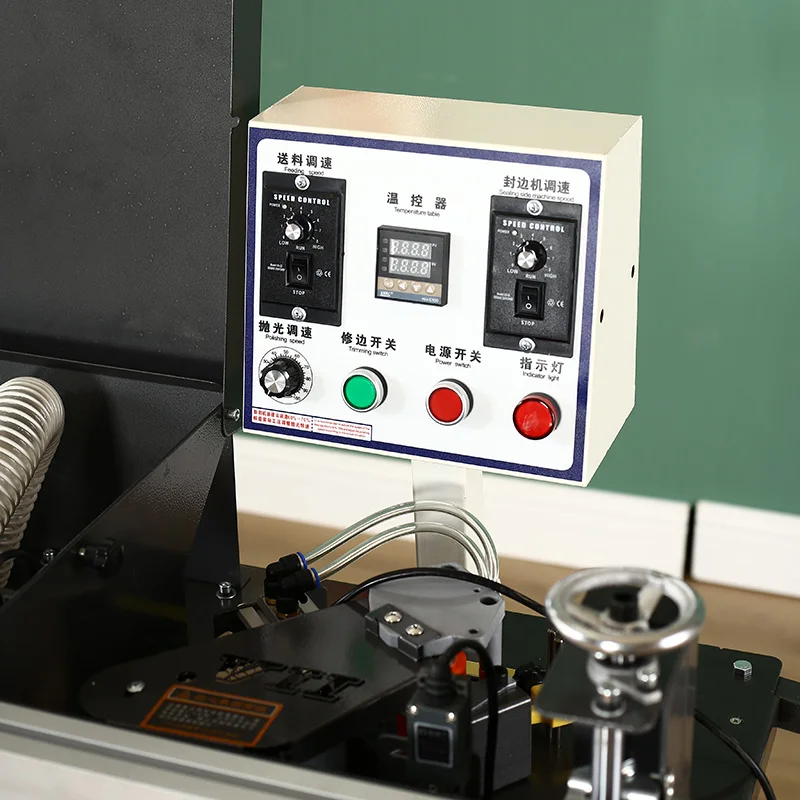

Control panel. multi-function button operation. save worry and effort.

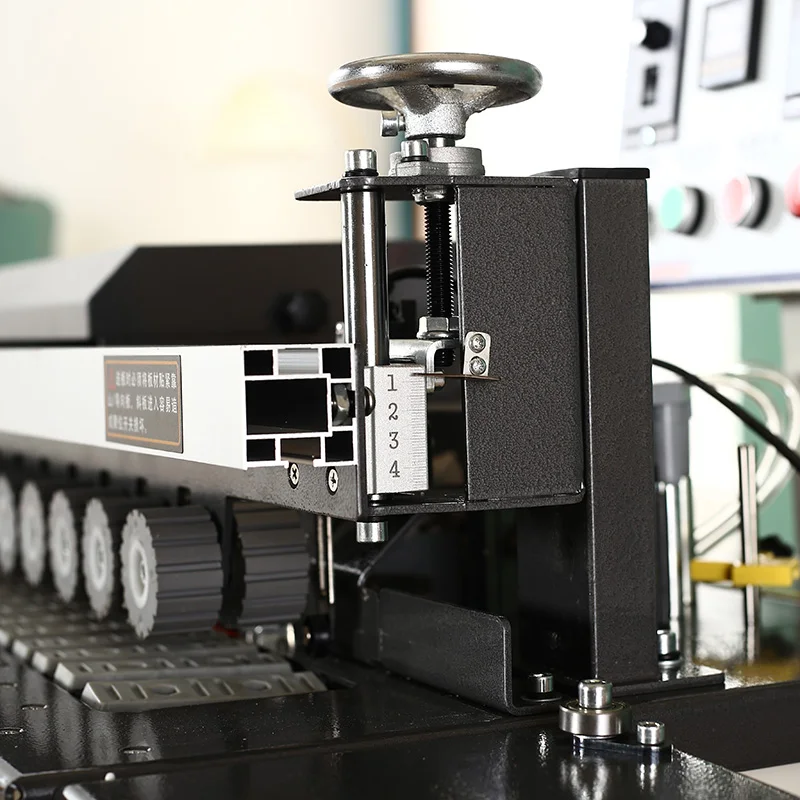

The aluminum alloy pressure beam can be adjusted. and the plate conveying is more stable.
Can be used for edge banding . which is powerful.
Pneumatically controlled edge strip cutting device makes work easier.
Double-row rubber pressure wheels. automatic plate feeding. large-size plates can also be transported stably.
2 high-speed trimming motors. combined with a large-diameter vacuum device. trims the edges beautifully and cleanly.
