Woodworking Automatic 45 Degree Bevel Straight Edge Banding Machine for MDF. PVC. ABS and Wood Panels
Contact Us| model number | DW3000 |
|---|
Description
Products Description

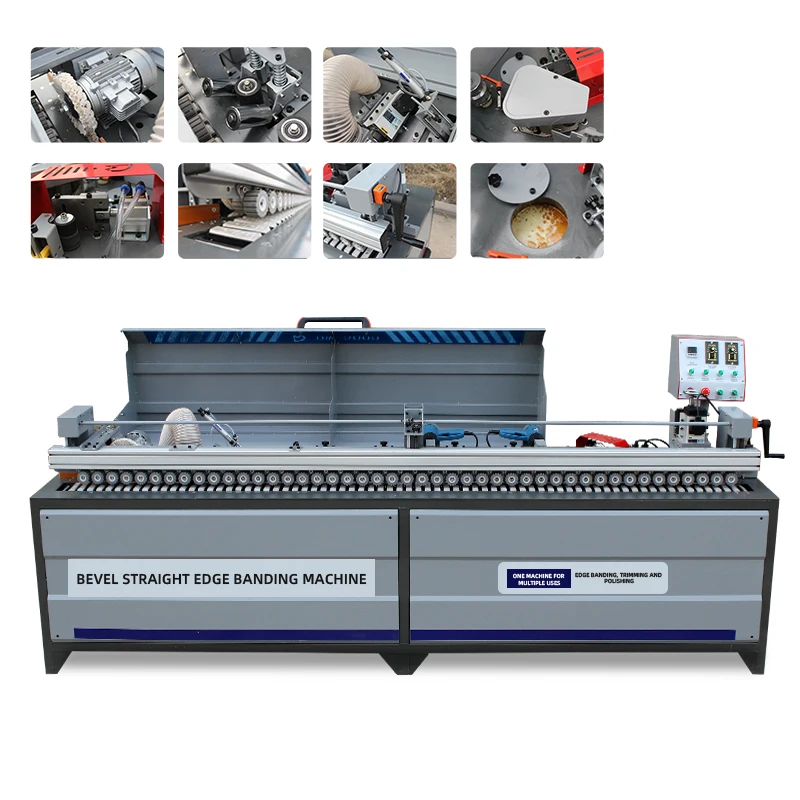

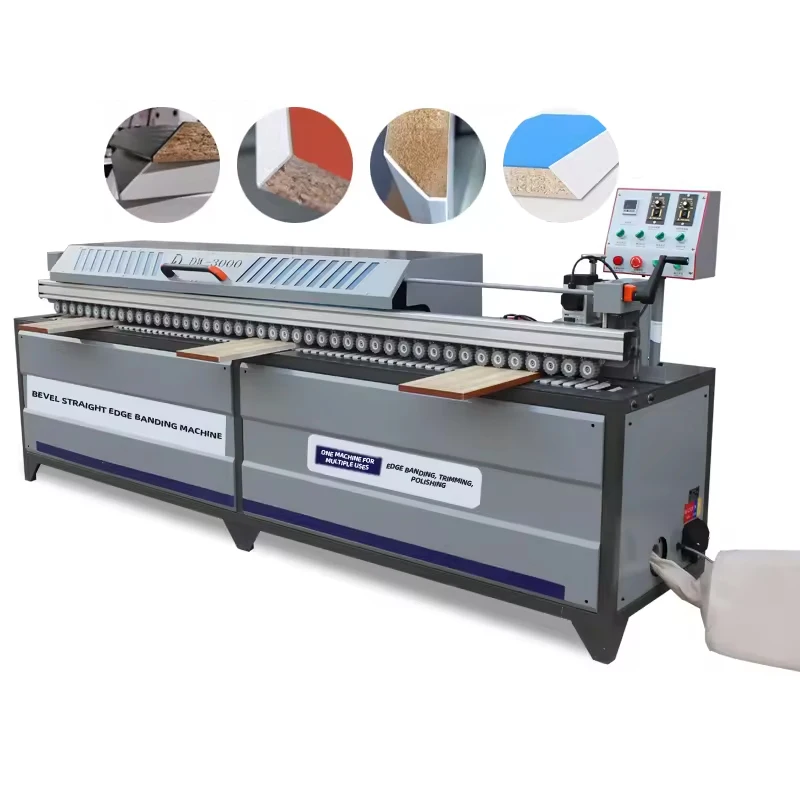

DW3000 Fully automatic 45 degree oblique straight edge panel furniture edge banding machine
The Straight Bevel Edge banding machine with Large-scale gluing bearing. edge band slotting device. slotting height can be adjusted. edge banding is more compliant. double cylinder feeding belt is more stable and not shaking. double heat gun design. heating edge banding is more obedient. 8 groups The angle of the oblique pressure wheel can be adjusted arbitrarily from 30 to 90. The 800W silent trimming motor. the industrial-grade polishing motor and the vacuuming motor are polished smoothly and cleanly. The DW3000 trimming motor is replaced with a spindle trimming motor. with a total of 3 spindle motors. With a flexible edge scraper to clean the glue line. the finish is better
Product Paramenters
Model | DW3000 | |||||
Total power | 11KW | |||||
Standard features | Plate milling. 30-90 degree edge banding. trimming. trimming. scraping and polishing. high-power vacuuming | Voltage | 380V/415V | |||
Minimum length of sheet | 30CM | Minimum width of sheet | 15CM | |||
Edge banding height | 0-50MM | Edge banding thickness | 0.3-3MM | |||
Pre-milled motor | 2.2KW | Heating power | 2.2KW*2 | |||
Edge power/speed | 160W 0-12M/min | Air source pressure | 0.5-0.7Mpa | |||

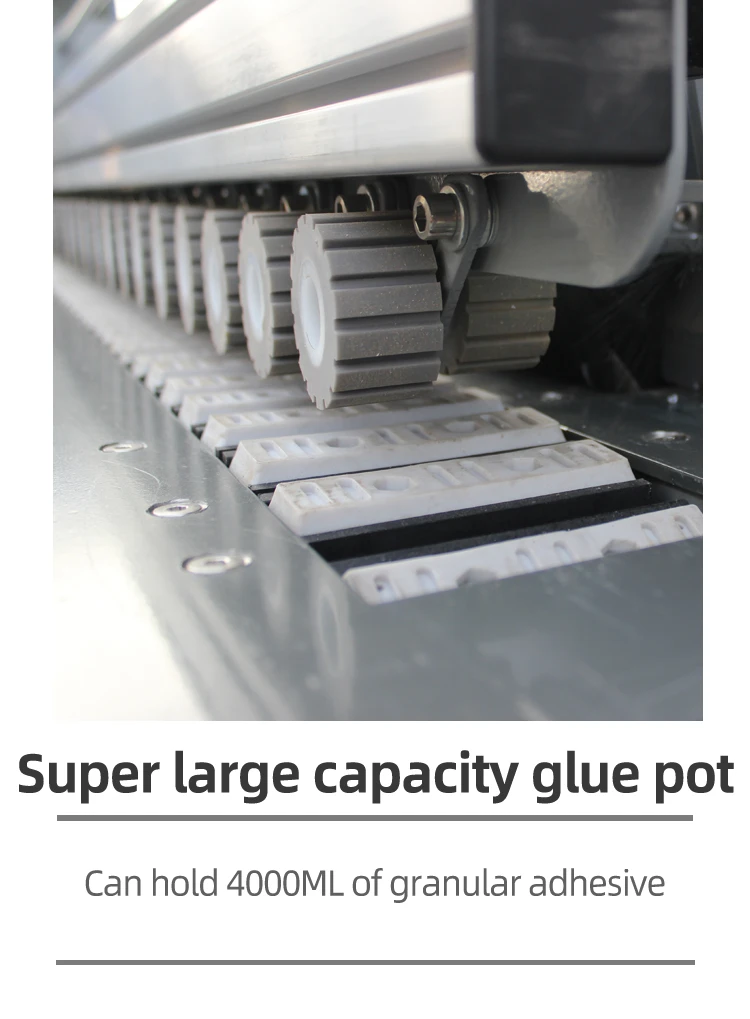

Transmission power/speed | 180W 0-12M/min | Glue pot capacity | 4000ml | |||
Trimming power/speed | 2.2KW*2 | Vacuum power | 550W | |||
Polishing power/speed | 0.4KW*2 | |||||

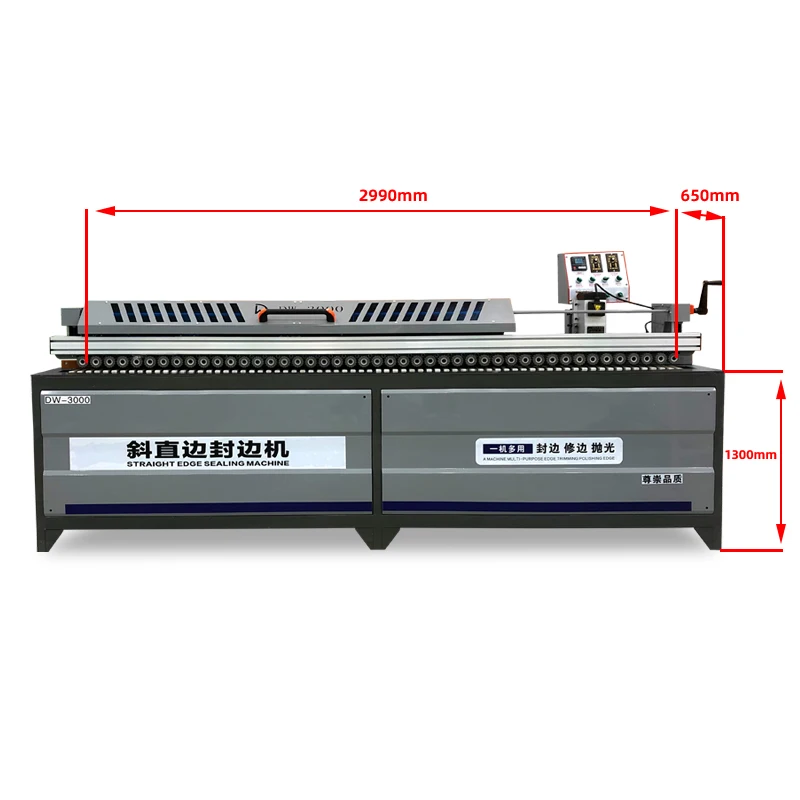

Product Size | 299*65*130CM | Product weight | 430KG | |||
Package Size | 312*74*115CM | |||||
Both oblique and straight. edge trimming and polishing. double hot air design. feeding auxiliary slide. 8 sets of oblique pressure wheels. automatic alignment. 45-degree pre-milling of the plate. edge banding with slots | ||||||
Why Choose Us
Our company is a source enterprise specializing in the production and exportof woodworking machinery products. The main products are edge bandingmachine. slotting machine. woodworking saw table and other auxiliary products.Our products are widely sold in China and exported to Europe. North America.Southeast Asia. Russia and other countries and regions. and are wellreceived by customers.
FAQ
Q1.Are you a trade company or a manufacturer ?We are manufacturer in Dezhou city. Shandong province of China.
We can offer competitive price of machine with high quality.Q2:Can I choose the Plug?Yes.we have EU.USA.AU.UK plug for your country useQ3:Is it OK to print my logo on the product?Yes.Please inform us formally before our production and confirm the design firstly for the mass production.Q4.I do not know Chinese.will the operation panel in English or French or other?Yes.all our machine are with Chinese and English.If you want only English or Spanish or other.we also can customize to youQ5:It is my first time to purchase goods from china.how do i do? Do not worry.Bei chen has 10 years export experience to all over the world.also has professional sales team.We have exported to Russia. Pakistan. Algeria. Vietnam. Peru and many other countries.Q6:How to pack the machine? We use wooden box to packge the machine to protect them to be safe.Q7.What to do if l have any other specifications for the current?lf you have any different requirements.just contact us and we will meet you.Q8.lf I need a sample for pretest. do you sale sample for this inquiry ?Yes. we can sale sample for pretest. lf you need this service. please contact us and we will giveyou a quotation.Q9.Can you produce the products according to my own drawings?Yes. we can do OEM according to your requirement
