Wood Furniture Machine Mdf Pvc Abs Pre Milling Corner Rounding Kdt Automatic Edge Banding Machine With Buffing
This product is currently out of stock and unavailable. SKU: Wood Furniture Machine Mdf Pvc Abs Pre Mil-36310853 Categories: Wood Based Panels Machinery, Woodworking Machinery Description Additional information Description Products Disply Product Parameters The main functionZDS365ZDS-368ZDS-468ZDS-468JZDS-468JJPre-milling√√Gluing 1√√√√√Gluing 2√End trimming√√√√√Rough Trimming√√√√Fine trimming√√√√√Corner rounding√√√Scraping√√√√√Buffing 1√√√√√Buffing 2√Min.Panel300*60mm300*60mm300*60mm/150*150mm300*60mm/150*150mm300*60mm/150*150mmTotal Power8.15KW9.65Kw13Kw16Kw18.5KwDimensions4070*900*1600mm4570*900*1600mm5800*900*1600mm6600*900*1600mm8000*900*1600mmWeight1200kg1400kg1600kg2000kg2300kgWorking pressure0.6Mpa0.6Mpa0.6Mpa0.6Mpa0.6MpaPanel Thickness10-60mm10-60mm10-60mm10-60mm10-60mmEdge Thickness0.4-3mm0.4-3mm0.4-3mm0.4-3mm0.4-3mmVoltage3-HP-380V3-HP-380V3-HP-380V3-HP-380V3-HP-380V our servicesWe can provide you with various custom […]
Quality
Certified
Shipping
Worldwide
Support
24/7 Service
Delivery
Fast Lead Time
Products Disply
Product Parameters
The main function | ZDS365 | ZDS-368 | ZDS-468 | ZDS-468J | ZDS-468JJ | ||||
Pre-milling | √ | √ | |||||||
Gluing 1 | √ | √ | √ | √ | √ | ||||
Gluing 2 | √ | ||||||||
End trimming | √ | √ | √ | √ | √ | ||||
Rough Trimming | √ | √ | √ | √ | |||||
Fine trimming | √ | √ | √ | √ | √ | ||||
Corner rounding | √ | √ | √ | ||||||
Scraping | √ | √ | √ | √ | √ | ||||
Buffing 1 | √ | √ | √ | √ | √ | ||||
Buffing 2 | √ | ||||||||
Min.Panel | 300*60mm | 300*60mm | 300*60mm/150*150mm | 300*60mm/150*150mm | 300*60mm/150*150mm | ||||
Total Power | 8.15KW | 9.65Kw | 13Kw | 16Kw | 18.5Kw | ||||
Dimensions | 4070*900*1600mm | 4570*900*1600mm | 5800*900*1600mm | 6600*900*1600mm | 8000*900*1600mm | ||||
Weight | 1200kg | 1400kg | 1600kg | 2000kg | 2300kg | ||||
Working pressure | 0.6Mpa | 0.6Mpa | 0.6Mpa | 0.6Mpa | 0.6Mpa | ||||
Panel Thickness | 10-60mm | 10-60mm | 10-60mm | 10-60mm | 10-60mm | ||||
Edge Thickness | 0.4-3mm | 0.4-3mm | 0.4-3mm | 0.4-3mm | 0.4-3mm | ||||
Voltage | 3-HP-380V | 3-HP-380V | 3-HP-380V | 3-HP-380V | 3-HP-380V | ||||
our services | We can provide you with various custom services | ||||||||
Details Images
PLC control system
Excellent integrated control system. clear at a glance. easy to operate. and easy to learn
Gluing
It adopts Teflon spraying process and scientific glue back design. It can make the temperature of the glue in the glue pot uniform without carbonization. and maintain good fluidity.
It can be upgraded to an upper glue pot and a PUR glue pot.
Pressing roller
4 sets of pressing roller wheels to tightly bond the edge banding strip and the plate
Optional 6 sets of pressing roller wheels.
End trimming unit with two high frequency motors
0.37 KW*2 .12000 rpm
Rough trimming system
2 high frequency motors for upper and lower edge with 0.75 KW (1 HP); 12000 rpm.
With 2pcs 6 teeth flat cutters.
Edge belt thickness change by manual
Fine trimming system2 high frequency motor for upper and lower edge with 0.75 KW (1 HP); 12000 rpm.
With 2pcs 6 teeth R2 cutters.
Edge belt thickness change by manual.
Edge scrapingEdge scraping mechanism ·Remove knife marks left by trimming and finish R rounded corners ·Electro-pneumatically controlled blowing
Buffing unit
Upper and lower buffing unit make the edge of the board after edge banding smoother.
Upper and lower buffing unit make the edge of the board after edge banding smoother.
Optional features
Pre-milling
Premilling unit with diamond cutters. 12000 rpm. 2x2.2 kW (3 HP). max. depth of cut 2 mm. max. workpiece height 60 mm. premilling
cutters with diamond cutters width 65mm; ensures right angled and chip free workpiece edges.
cutters with diamond cutters width 65mm; ensures right angled and chip free workpiece edges.
Corner rounding
Four-motor profiling. tracking and trimming ·High-precision profiling. to ensure the perfect tactile and visual effects of work
piece processing ·Can achieve 4 different profiling effects. as well as diamond corners.
piece processing ·Can achieve 4 different profiling effects. as well as diamond corners.
Quick Sol Unit
With the upper melt system and the dual pre-melt system. the replacement is simple and convenient. The glue box is close to the pre-melt and the glue quantity control is more accurate.
Two Gluepots
Double glue pot. which can use different colors of glue to facilitate edge sealing operations of different colors.
Optional PUR device.
Glue pot optional up or down.
Glue pot optional up or down.
Flexible edge scraping
scrape the wave marks on the edge banding tape. more steadily.
Narrow plate auxiliary device
Narrow plate edge sealing is more stable and won't deviate.
Slotting device
Grooves are made on the finished edge banding plate as needed. forming in one step to improve efficiency.
Double Buffing unit
Upper and lower buffing unit ensures a perfect finish on the edge radius and removes any colour irregularities.
About Optional Features

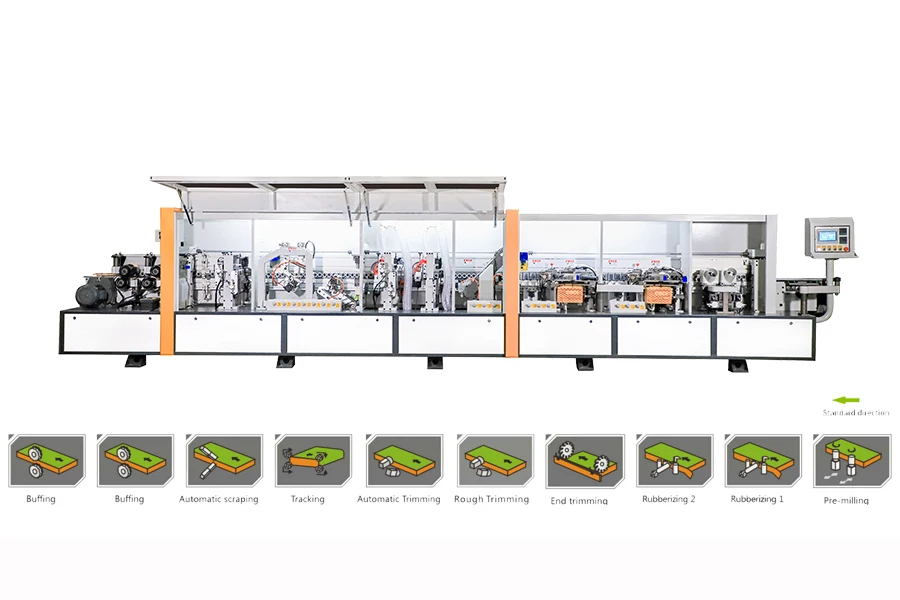

Edge banding machines can have different functional combinations (Pre-milling. Gluing. End trimming. Rough trimming. Fine trimming. Profiling unit . Scraping . Buffing . Grooving. Drilling). According to your needs. in addition to the basic functions. we have multiple models with combined functions. If you need other features or want to remove some features. you can contact us and we can recommend the appropriate model to you.
