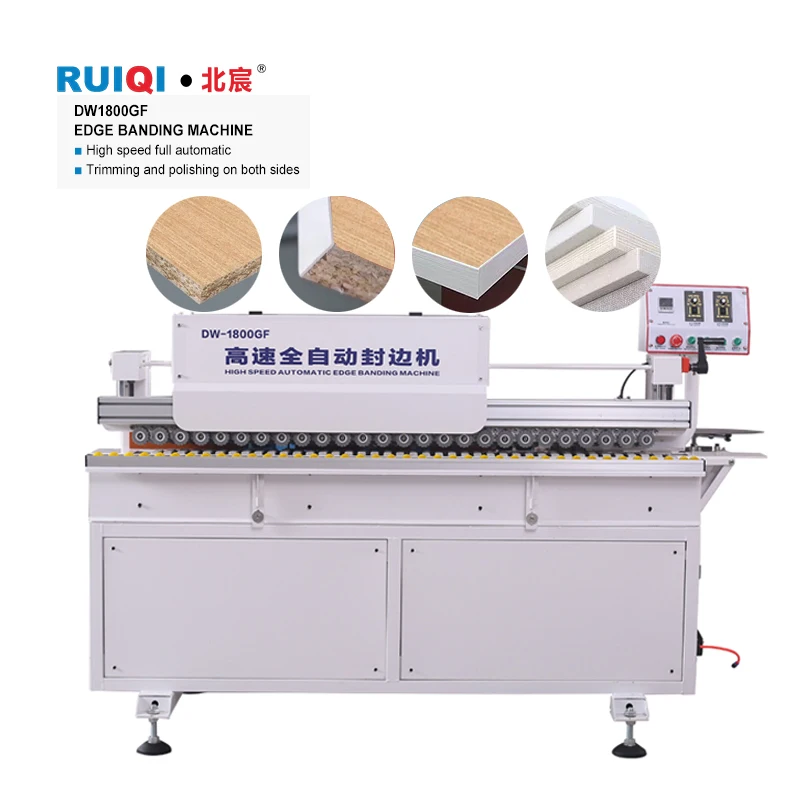

Veneer Peeling Hot Melt Edgebander for Sale Trimming and Automatic Pvc Mdf Cnc Edge Banding Machine
Contact Us| model number | DW1800 |
|---|
Description
Products Description

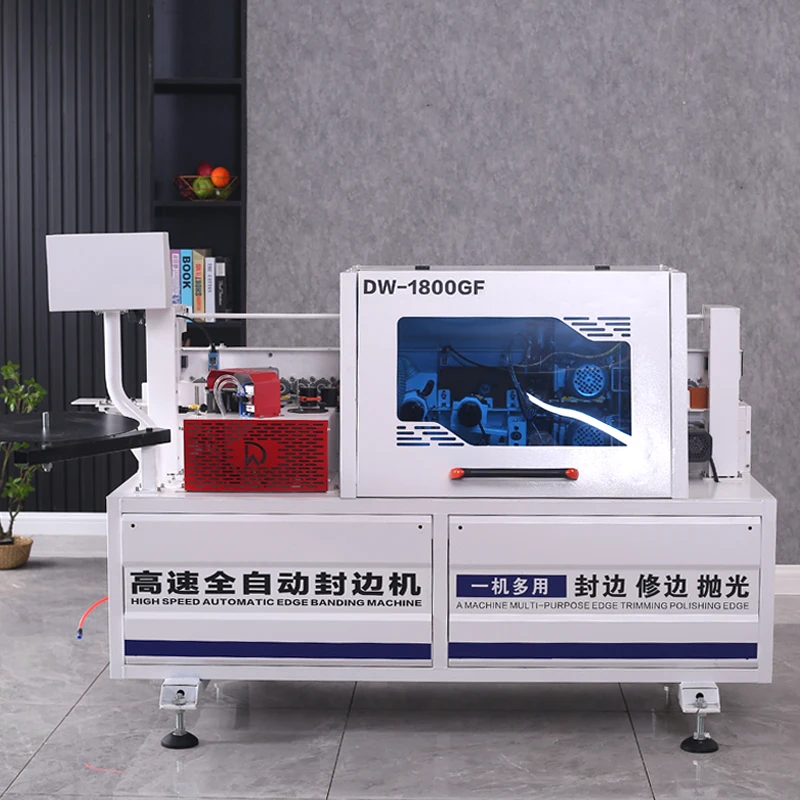

DW1800 automatic edge banding machine advantages??/STRONG> Adopt imported motor and high quality electrical component. High precision and work efficiency. Automatic and precise gluing procedure as well as integrated double finish. Glue evenly. conveying stability. All the working area and specifications can be customized according to your requests. 1. It can achieve the gluing. end cutting. rough trimming. fine trimming. tracking. scraping and polishing functions automatically. 2.It applies glue in a stable and uniform way. 3. Profile tracking function rounds the four corners. making them more smooth and safer. 4. Automatic operation greatly improves edge banding efficiency and saves labor costs. 5. Suitable for processing all kinds of MDF. particleboard. plywood. ABB boards. PVC panels. organic glass plates and solid wood and other wood structure. and hardness of a similar plate. 6. Mobile table guide for the roll-ball differential structure. high positioning accuracy. 7. Mobile workstations with high-strength extruded aluminum alloy. high strength. non-deformation. 8. Mobile table surface oxidation treatment. beautiful and wearable. 9. The main blade and a crossed angle of inclination from the precision instrument visual display.
Product Paramenters
Model | DW1800 | ||
Total power | 4.9KW | ||
Standard features | Double-sided gluing. top and bottom trimming. top and bottom polishing. front and rear alignment. flexible edge scraping. suck dust | Voltage | 380V/220V/415V |
Minimum length of sheet | 20CM | Minimum width of sheet | 10CM |
Edge banding height | 0-50MM | Edge banding thickness | 0.3-3MM |
Edge power/speed | 160W 0-14M/min | Air source pressure | 0.4-0.6Mpa |
Transmission power/speed | 180W 0-14M/min | Glue pot capacity | 4000ml |
Trimming power/speed | 800W*2 24000r/min | Vacuum power | 550W |
Polishing power/speed | 380W*2 | ||
Product Size | 220*65*125CM | Product weight | 320KG |
Package Size | 207*84*128CM(Heightened and widened bottom corners) |
Why Choose Us
Our company is a source enterprise specializing in the production and exportof woodworking machinery products. The main products are edge bandingmachine. slotting machine. woodworking saw table and other auxiliary products. Our products are widely sold in China and exported to Europe. North America.Southeast Asia. Russia and other countries and regions. and are wellreceived by customers.
FAQ
Q1.Are you a trade company or a manufacturer ? We are manufacturer in Dezhou city. Shandong province of China.
We can offer competitive price of machine with high quality. Q2:Can I choose the Plug? Yes.we have EU.USA.AU.UK plug for your country use Q3:Is it OK to print my logo on the product? Yes.Please inform us formally before our production and confirm the design firstly for the mass production. Q4.I do not know Chinese.will the operation panel in English or French or other? Yes.all our machine are with Chinese and English.If you want only English or Spanish or other. we also can customize to you Q5:It is my first time to purchase goods from china.how do i do? Do not worry.Bei chen has 10 years export experience to all over the world. also has professional sales team.We have exported to Russia. Pakistan. Algeria. Vietnam. Peru and many other countries. Q6:How to pack the machine? We use wooden box to packge the machine to protect them to be safe. Q7.What to do if l have any other specifications for the current? lf you have any different requirements.just contact us and we will meet you. Q8.lf I need a sample for pretest. do you sale sample for this inquiry ? Yes. we can sale sample for pretest. lf you need this service. please contact us and we will giveyou a quotation. Q9.Can you produce the products according to my own drawings? Yes. we can do OEM according to your requirement
