Plywood Making Machine Small Type Full Automatic Edge Banding Machine With Trimming

Wood Based Panels Machinery Woodworking Machinery

Plywood Making Machine Small Type Full Automatic Edge Banding Machine With Trimming

This product is currently out of stock and unavailable. SKU: Plywood Making Machine Small Type Full Aut-36310379 Categories: Wood Based Panels Machinery, Woodworking Machinery Description Additional information Description Product Paramenters ModelZDSF190FunctionAutomatic plate feedingAutomatically break the beltDouble-sided gluingUpper and lower trimming and polishingCurved and straight edgebandingLarge diameter surrounding vacuumEdge typeBoth curved and straight linesVoltage220v50hzRated power4kwRated air […]

Quality

Certified

Shipping

Worldwide

Support

24/7 Service

Delivery

Fast Lead Time

Get a Quote Contact Us

Product Paramenters

Model	ZDSF190
Function	Automatic plate feeding Automatically break the belt Double-sided gluing Upper and lower trimming and polishing Curved and straight edgebanding Large diameter surrounding vacuum
Edge type	Both curved and straight lines
Voltage	220v50hz
Rated power	4kw
Rated air pressure	0.4-0.6mpa
Suction	1200w
Belt power	25w
Transmission power	120w
Heating power	800w
Polishing power	180w*2
Trimming power	800w*2
Conveyer belt	0-14m/min
Feed plate	0-14m/min
Sheet thickness	10-50mm
Strip thickness	0.5-2.5mm
Glue capacity	1000ml
Overall size	19005601300mm
Packing size	1385864cm
Weight	120kg
our services	We can provide you with various custom services

Products Disply

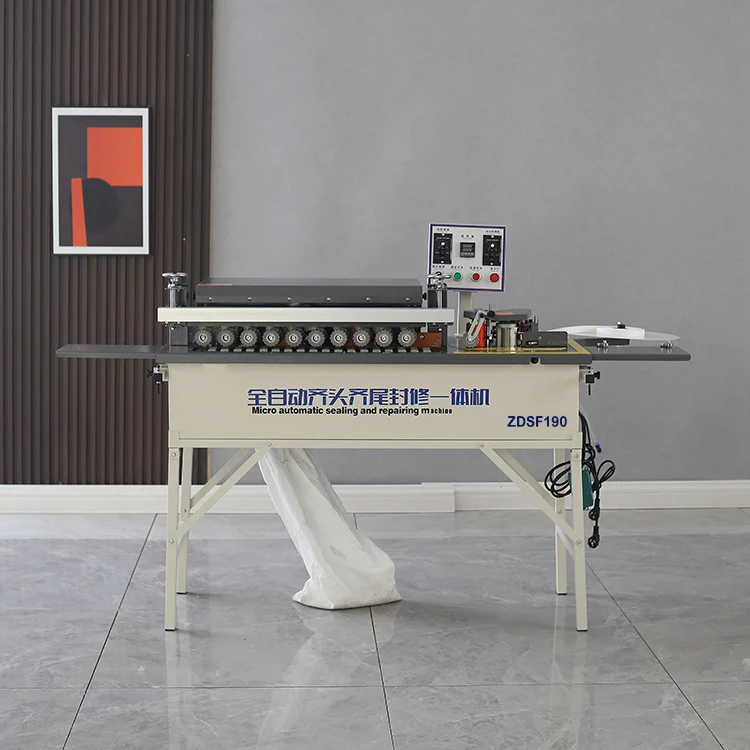

Miniature Fully Automatic Curved and Straight Dual-purpose Edge Banding Machine

The use of square slide rail realizes profiling and trimming. and the use of imported brand 4-blade alloy arc knife to trim the plate effect arc shape. automatic end cutting. use two big diameter dust collectors. close fit. collecting effect can reach 99%. For crawler transmission. we use steel rod slide rails. which is more stable in delivery. and the real materials can be seen!

Product details

Control panel. multi-function button operation. save worry and effort.

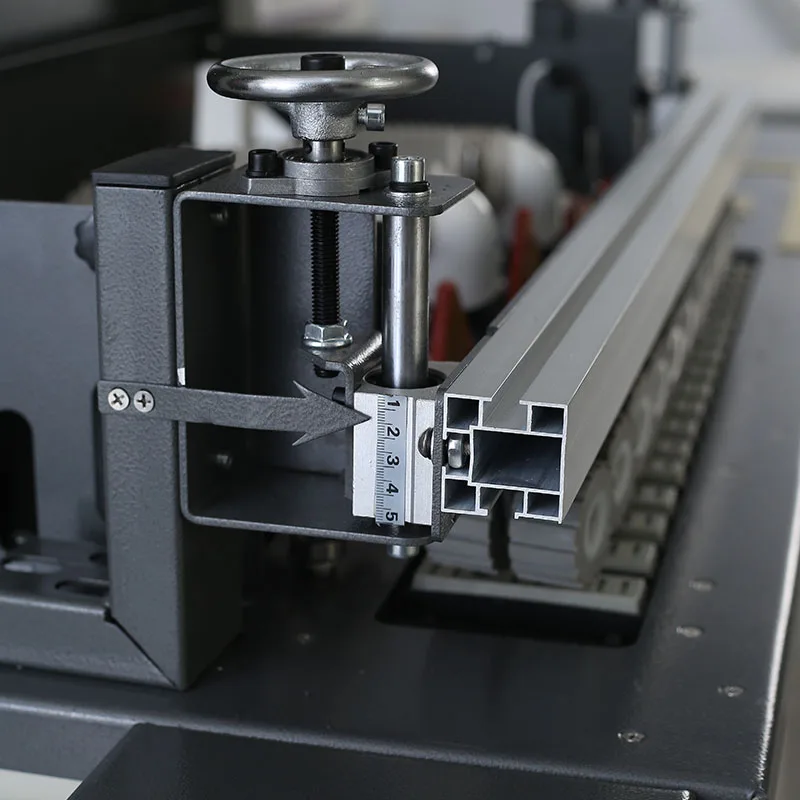

The aluminum alloy pressure beam can be adjusted. and the plate conveying is more stable.

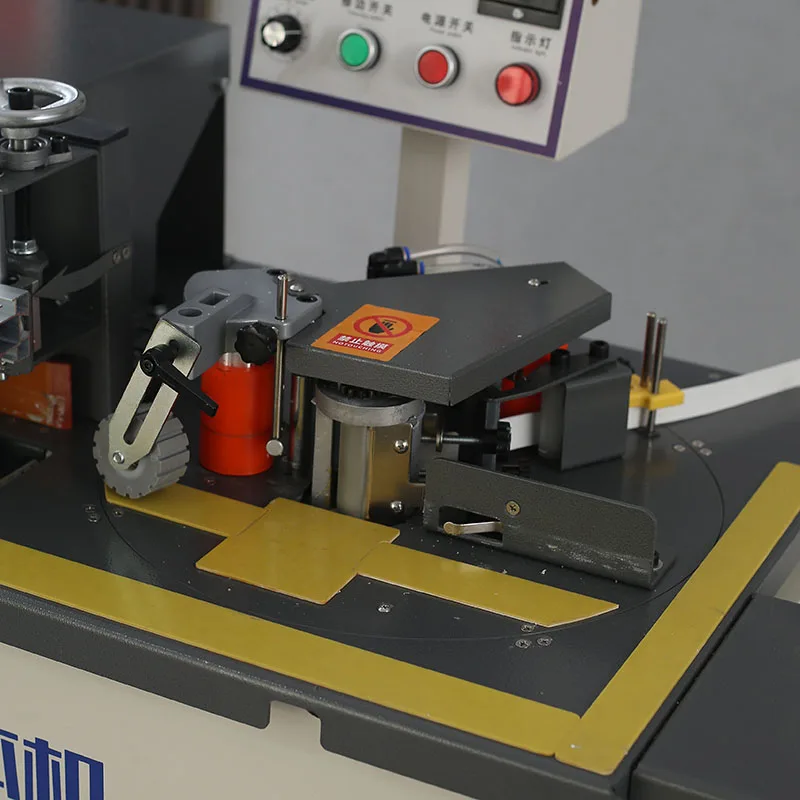

It can be used for straight edge banding. and can be used for curved edge banding after rotating 180 degrees. which is powerful.

Pneumatically controlled edge strip cutting device makes work easier.

Double-row rubber pressure wheels. automatic plate feeding. large-size plates can also be transported stably.

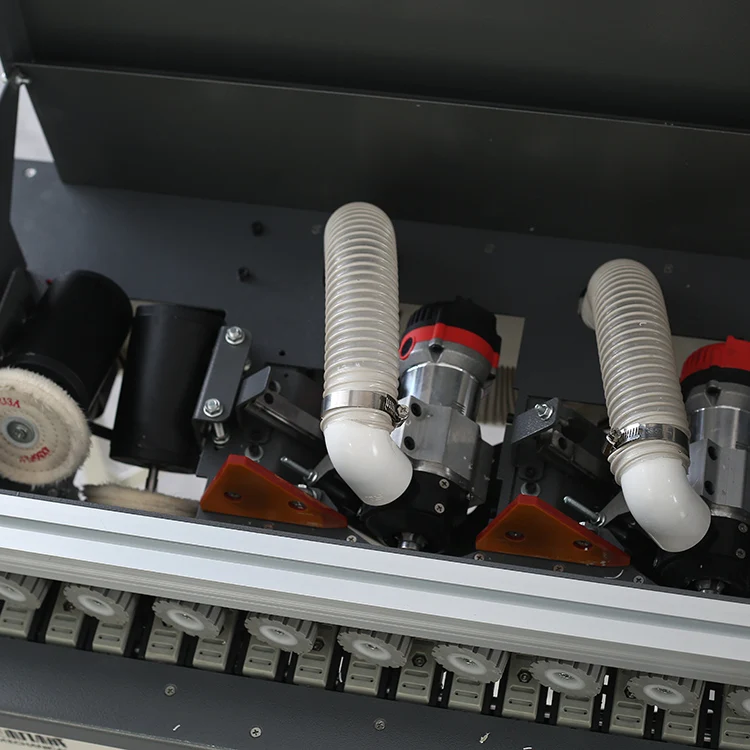

2 high-speed trimming motors. combined with a large-diameter vacuum device. trims the edges beautifully and cleanly.

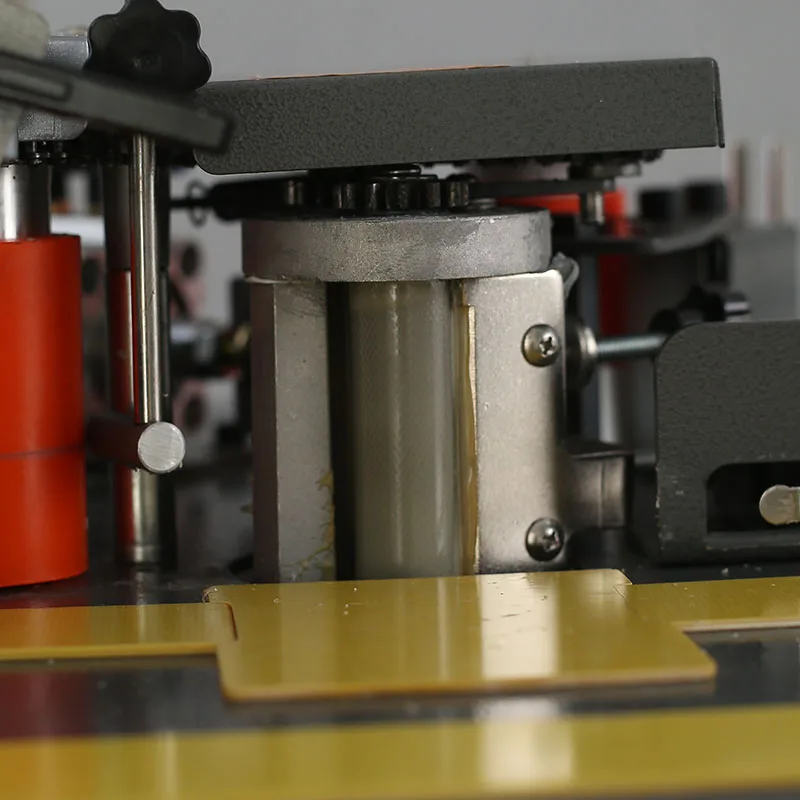

Glue roller. adjustable glue volume.

Push-type limit switch. precise control.

Extended feed plate. more convenient to use.

4-edge arc-shaped alloy cutter head. the arc-shaped trimming is more beautiful.

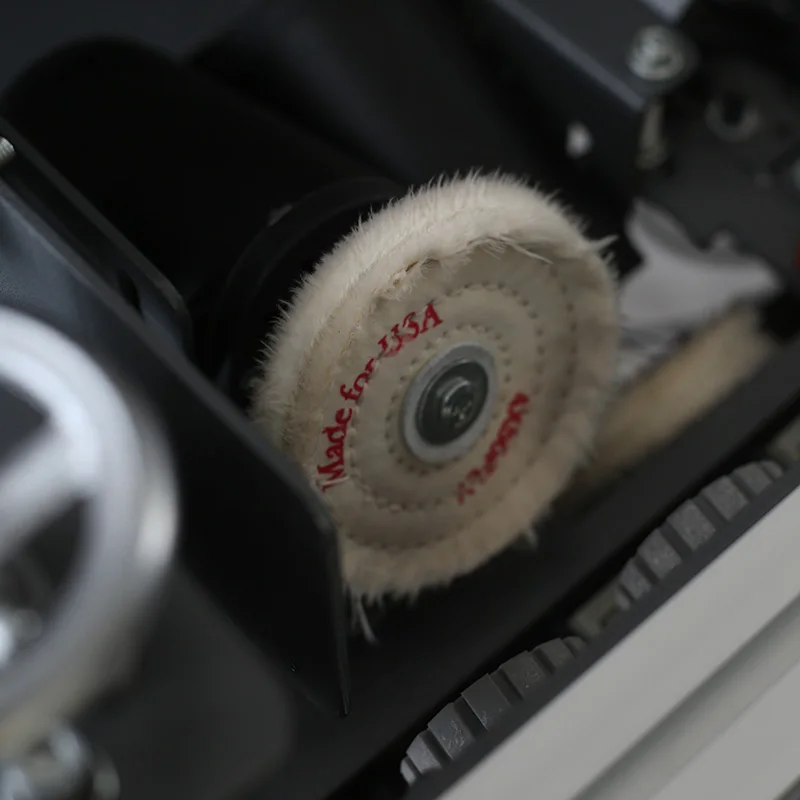

Polishing device. cross polishing up and down.

Comes with a tray for edge banding.
