Wood Based Panels Machinery
High Speed Automatic Edge Banding Machine With Edge Banding Trimming Buffing and End Cutting Edge Bander
This product is currently out of stock and unavailable. SKU: High Speed Automatic Edge Banding Machine -36310616 Categories: Wood Based Panels Machinery, Woodworking Machinery Description Additional information Description Product Paramenters ModelZDSF190FunctionAutomatic plate feeding. .Automatically break the beltDouble-sided gluing .Upper and lower trimming and polishingCurved and straight edgebanding .Large diameter surrounding vacuumEdge typeBoth curved and straight […]
Quality
Certified
Shipping
Worldwide
Support
24/7 Service
Delivery
Fast Lead Time
Product Paramenters
Model | ZDSF190 |
Function | Automatic plate feeding. .Automatically break the belt Double-sided gluing .Upper and lower trimming and polishing Curved and straight edgebanding .Large diameter surrounding vacuum |
Edge type | Both curved and straight lines |
Voltage | 220v50hz |
Rated power | 4kw |
Rated air pressure | 0.4-0.6mpa |
Suction | 1200w |
Belt power | 25w |
Transmission power | 120w |
Heating power | 800w |
Polishing power | 180w*2 |
Trimming power | 800w*2 |
Conveyer belt | 0-14m/min |
Feed plate | 0-14m/min |
Sheet thickness | 10-50mm |
Strip thickness | 0.5-2.5mm |
Glue capacity | 1000ml |

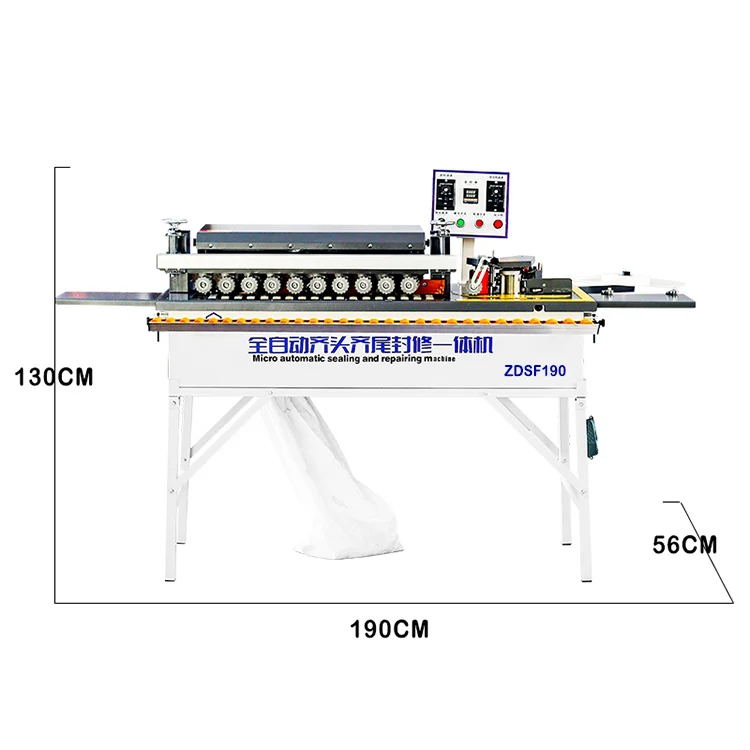

Overall size | 1900*560*1300mm |
Packing size | 138*58*64cm |
Weight | 120kg |
our services | We can provide you with various custom services |
Products Disply

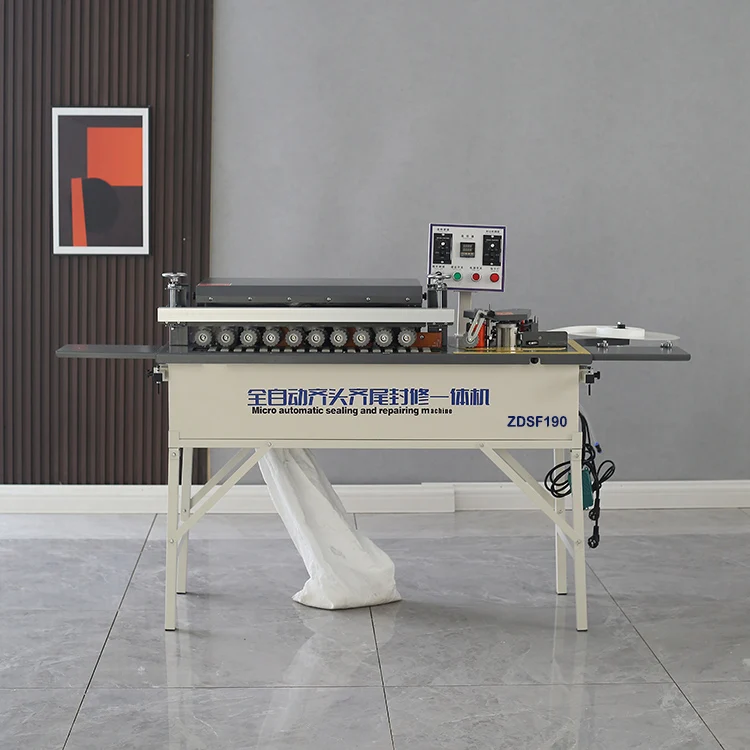

Miniature Fully Automatic Curved and Straight Dual-purpose Edge Banding Machine
The use of square slide rail realizes profiling and trimming. and the use of imported brand 4-blade alloy arc knife to trim the plate effect arc shape. automatic end cutting. use two big diameter dust collectors. close fit. collecting effect can reach 99%. For crawler transmission. we use steel rod slide rails. which is more stable in delivery. and the real materials can be seen!
Product details

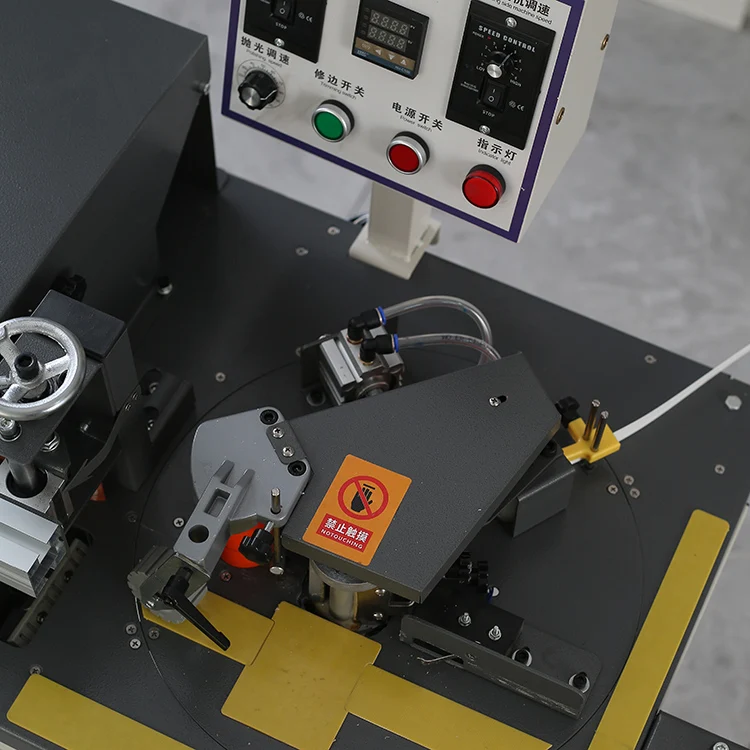

Control panel. multi-function button operation. save worry and effort.

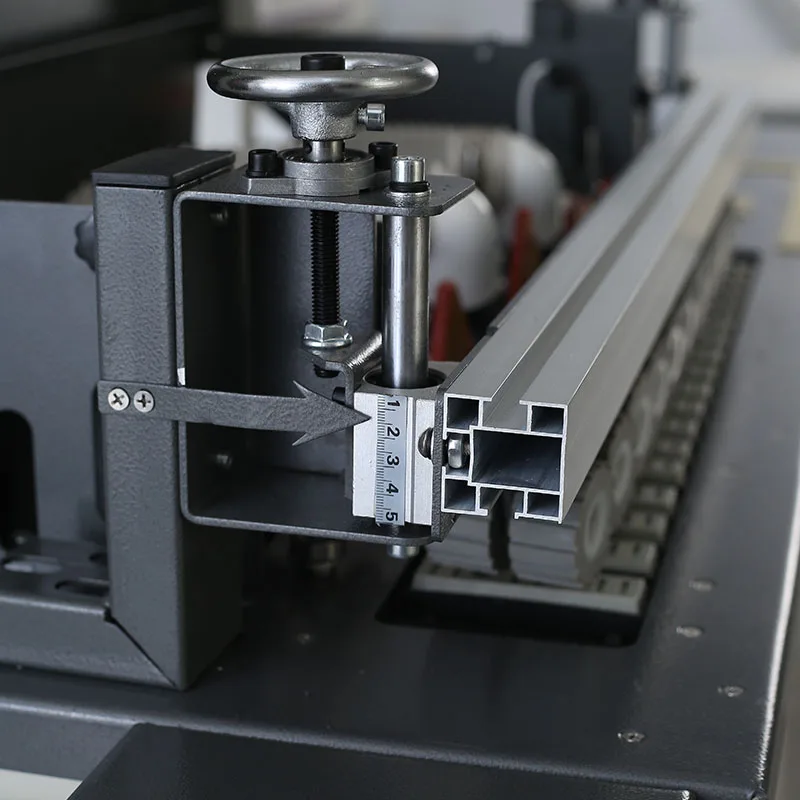

The aluminum alloy pressure beam can be adjusted. and the plate conveying is more stable.
It can be used for straight edge banding. and can be used for curved edge banding after rotating 180 degrees. which is powerful.
Pneumatically controlled edge strip cutting device makes work easier.
Double-row rubber pressure wheels. automatic plate feeding. large-size plates can also be transported stably.
2 high-speed trimming motors. combined with a large-diameter vacuum device. trims the edges beautifully and cleanly.

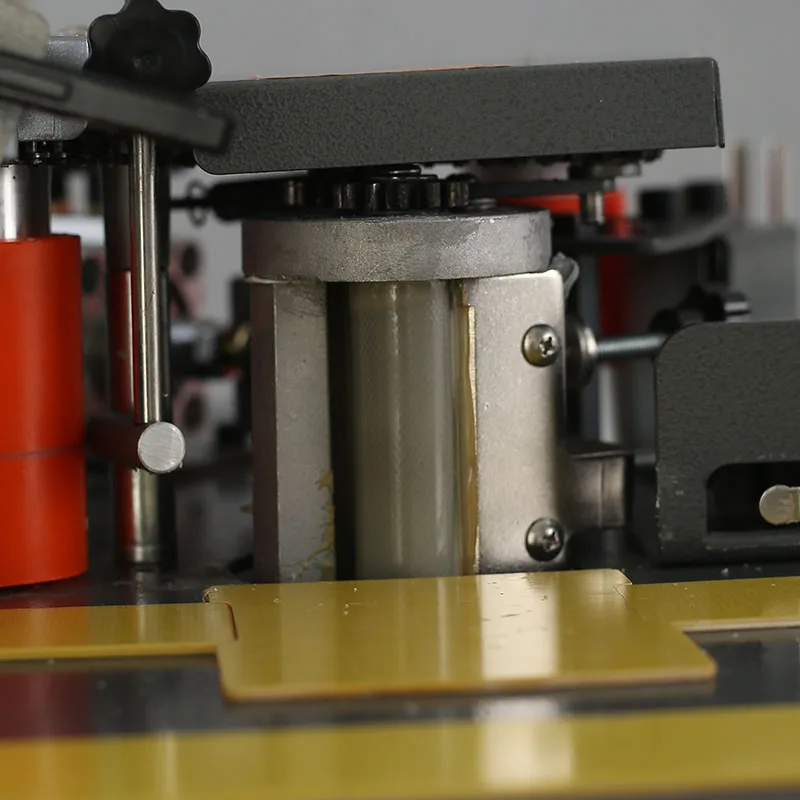

Glue roller. adjustable glue volume.
Push-type limit switch. precise control.
Extended feed plate. more convenient to use.
4-edge arc-shaped alloy cutter head. the arc-shaped trimming is more beautiful.

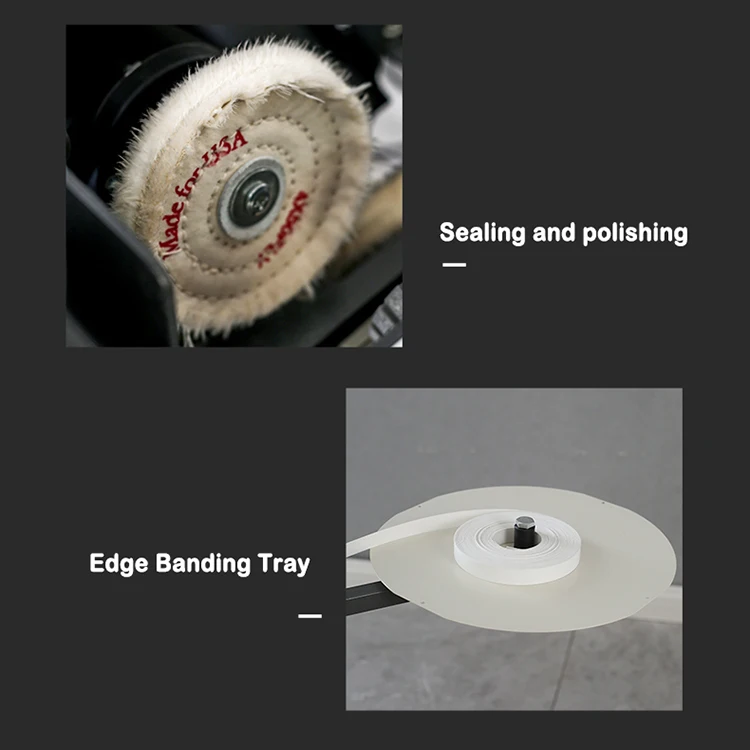

Polishing device. cross polishing up and down.
Comes with a tray for edge banding.
