Products Disply

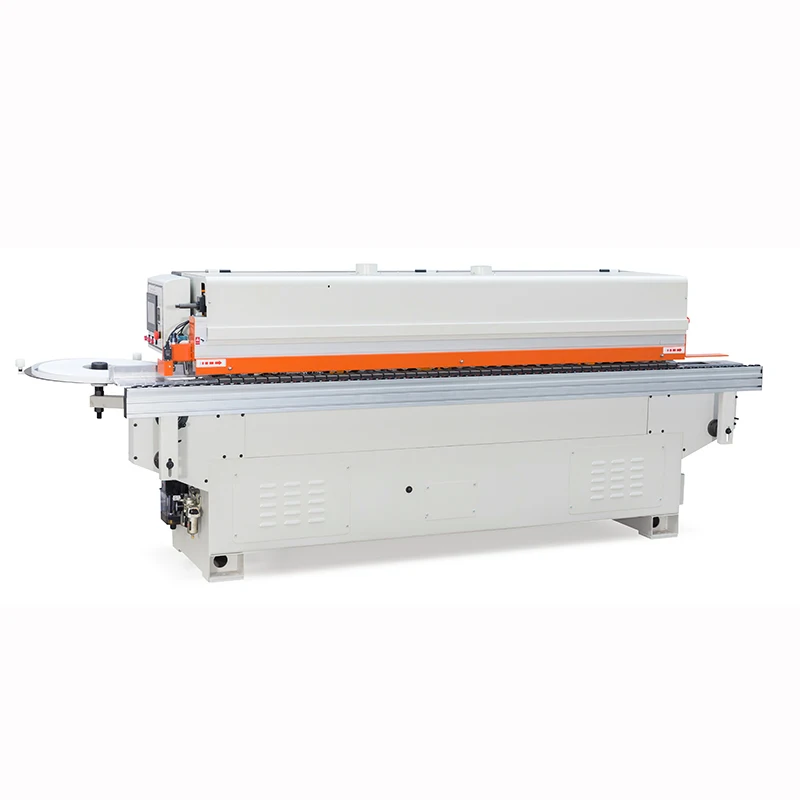

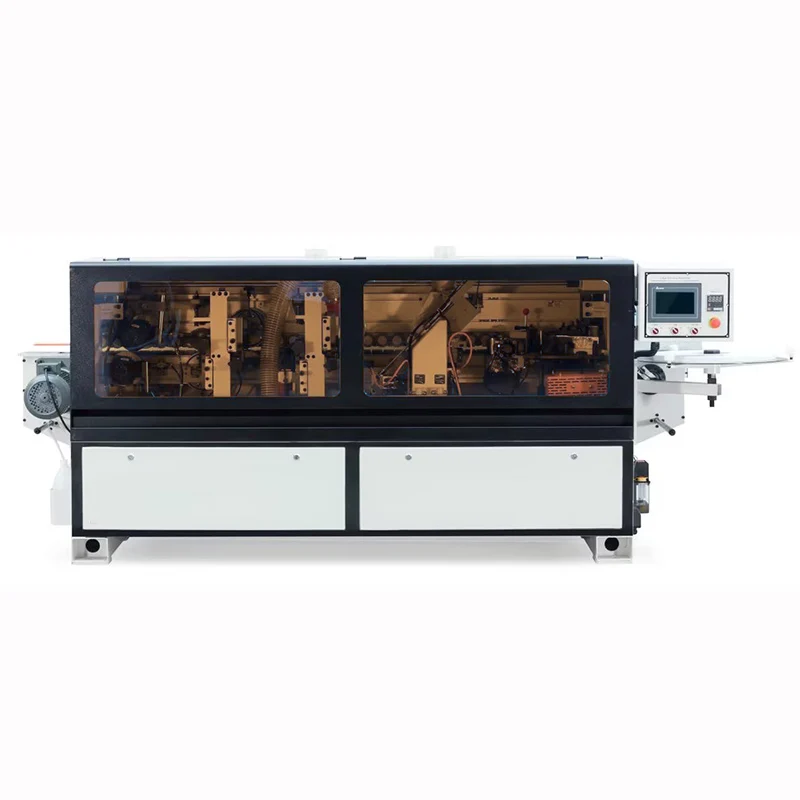

Model	ZDS-280 Edge Banding Machine
The main function	Gluing. End trimming. Fine trimming. Scraping. Cleaning.Buffing
Working pressure	0.65Mpa	Voltage	380V-3HP
Conveyor belt speed	9-12m/min	Power	9kw
Min. panel width	60mm	Min. panel length	120mm
Panel thickness	10-60mm	Edge thickness	0.3-3mm
Weight	860kg	Dimensions	30007501270mm

Product details

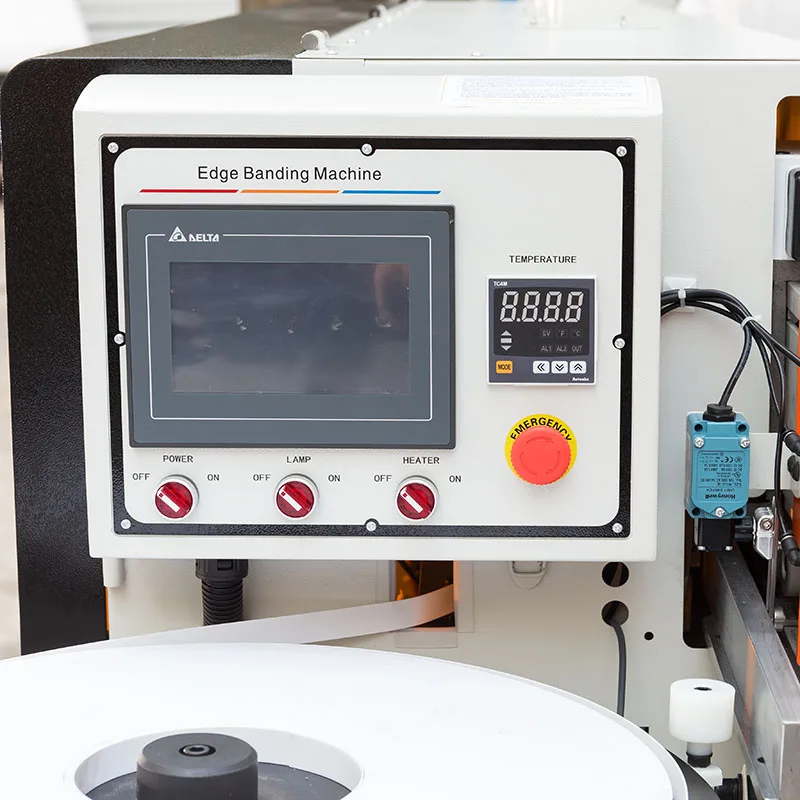

The touch screen. frequency converter and PLC all adopt Taiwan Delta. which is stable in operation and easy to operate.

Gluing

It adopts Teflon spraying process and scientific glue back design. It can make the temperature of the glue in the glue pot uniform without carbonization. and maintain good fluidity.

Pressing

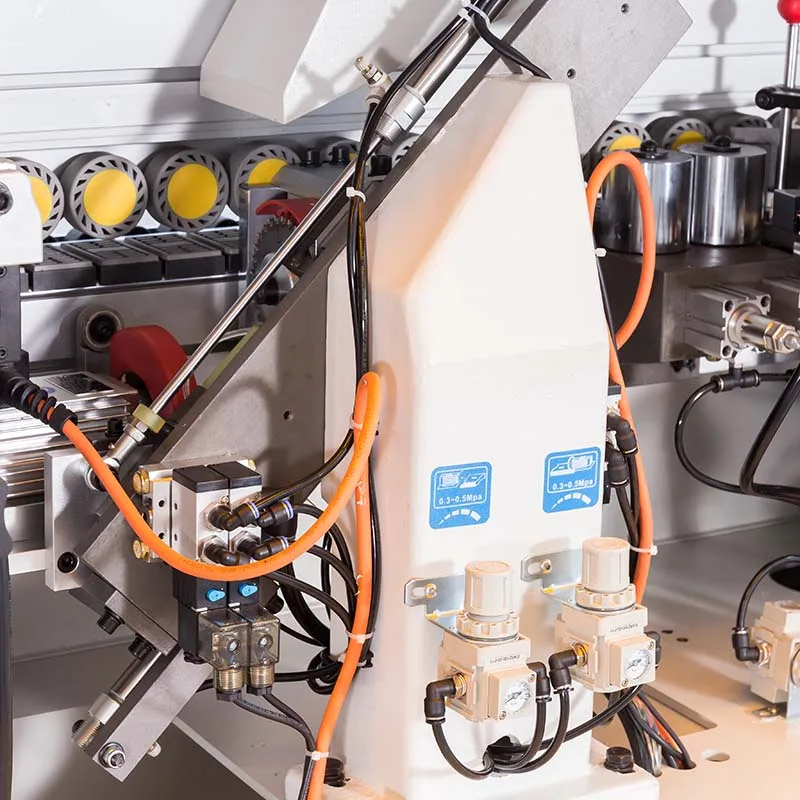

The pneumatic design with double-wheel adjustable stroke makes the pressure adjustment easier. It can be adjusted according to the thickness of the edge banding. Improved bonding properties of glue and sidebands.

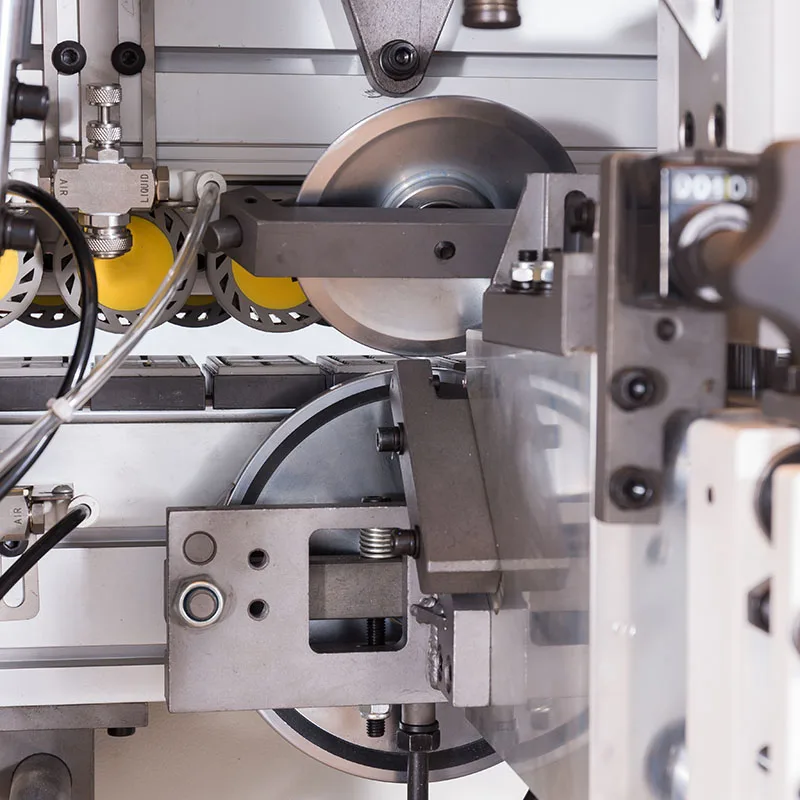

End Trimming

The air pressure balance device is adopted. which is more stable and easier to adjust. And optimize the gas path design. reduce the noise. and improve the efficiency of the equipment.

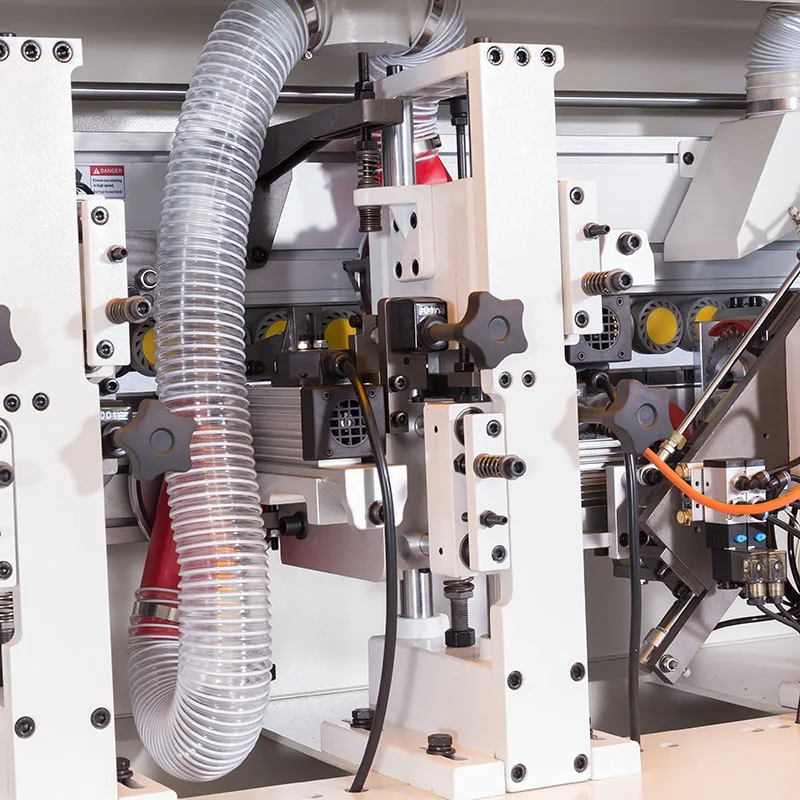

Fine Trimming

The stable frame design reduces the vibration of the tool during high-speed cutting. The design of the cutting edge is optimized to make the workpiece more perfect after edge sealing.

Scraping

Small and compact edge scraping. solve the problem of uneven trimming. At the same time. trim the excess sideband to make the sideband more beautiful.

Buffing

Up and down polishing. motor 0.37kw*2.

Contactors produced by Schneider Electric. UFC high speed motor
