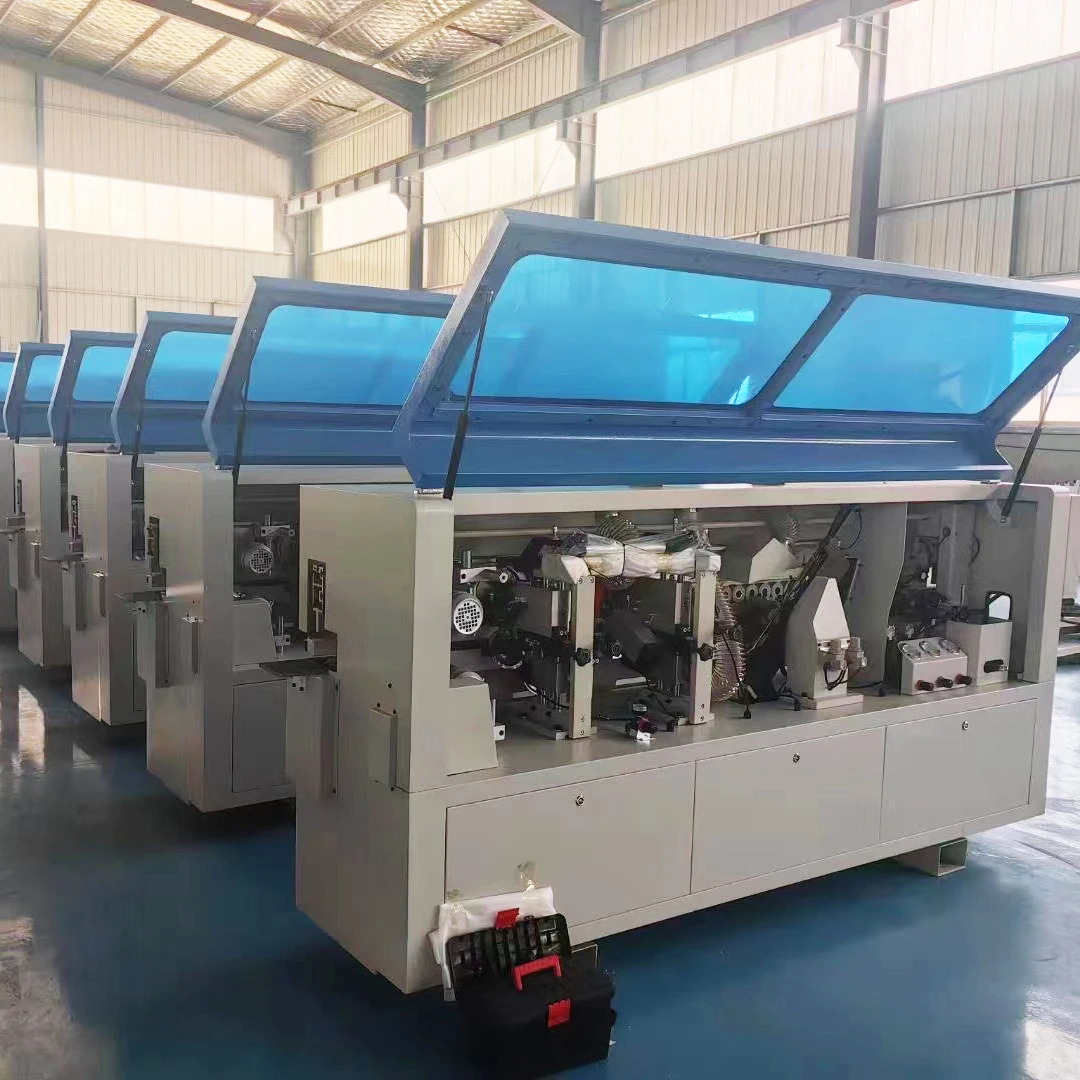

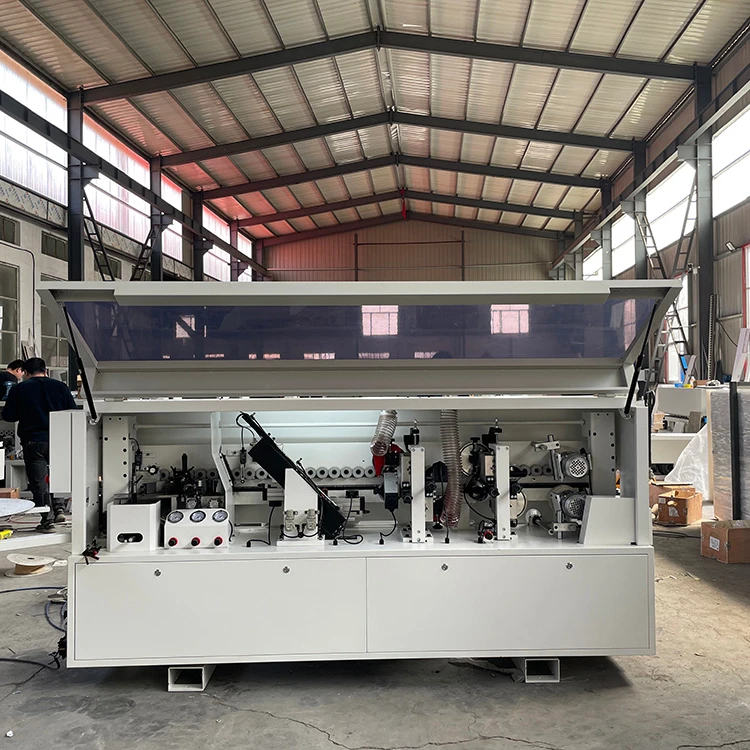

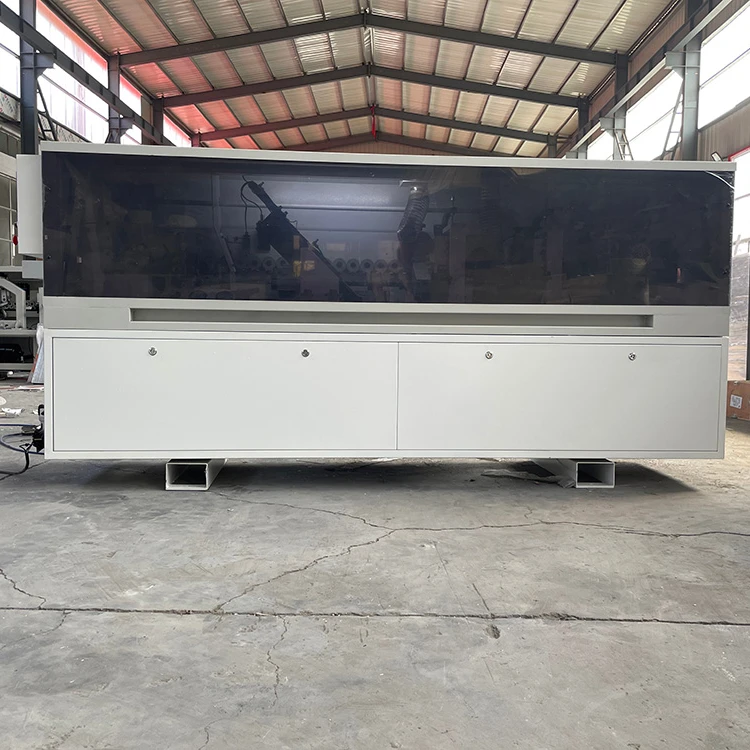

Automatic Straight Line Edge Bander Edge Bander Return Conveyor Pur Edge Banding Machine
Contact Us| model number | ZDSF280B, ZDSF280C |
|---|
Description
Products Disply
1. The fuselage adopts 14mm national standard high-strength steel plate table. frame-type fuselage structure. which is durable and not easy to deform after high-temperature quenching treatment.2. The guide rail of the conveyor belt is made of HT260 material. and the conveying speed is stable.3. The conveying motor adopts a customized Taiwan brand. with stable power output. and the thermal protection system improves the safety factor.4. All high-speed motors are well-known and reliable brands. which are efficient and stable.5. The head guide rail adopts Taiwan brand. which is stable. durable and has high precision.6. Pneumatic system. German Festo or Taiwan AirTAC brand cylinder and safety valve. high-sensitivity AirTAC magnetic switch!7. Electrical appliances and operating systems: Delixi/Chint: air switches. contactors. Japanese Omron travel switches.
Product Parameters
Model | ZDS280B | ZDS280C | |
The main function | Gluing. End trimming. Fine trimming. Buffing | Gluing. End trimming. Fine trimming. Scraping. Buffing | |
Working pressure | 0.6-0.8Mpa | ||
Panel thickness | 10-55mm | ||
Edge thickness | 0.4-3mm | ||
Conveyor belt speed | 15m/min | ||
Min. panel width | 45mm | ||
Min. panel length | 80mm | ||
Voltage | 380V-3HP | ||
Power | 7.5kw | ||
Weight | 650kg | 800kg | |
Dimensions | 2300*700*1250mm | 2800*700*1250mm | |
Product details

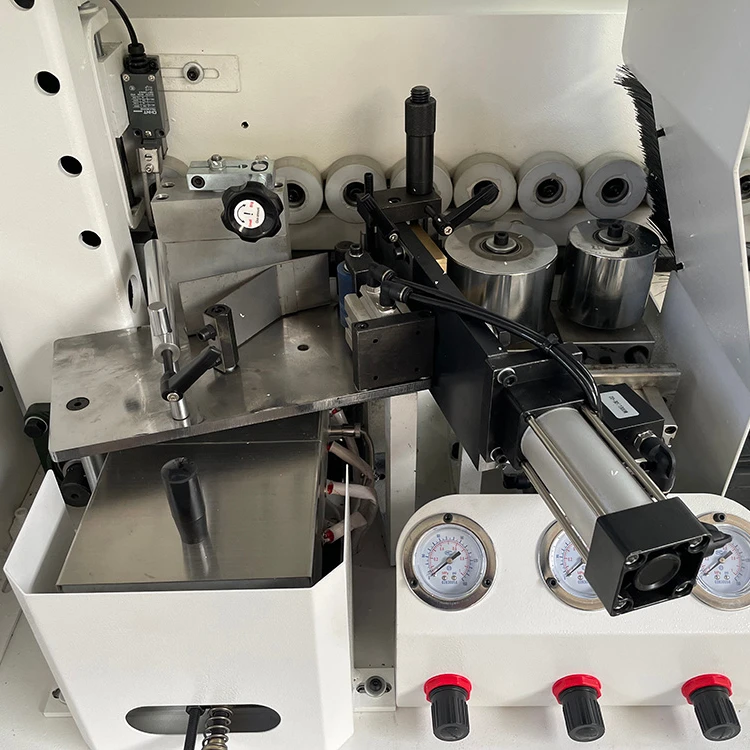

Gluing and pressing device
Control Panel
End trimming

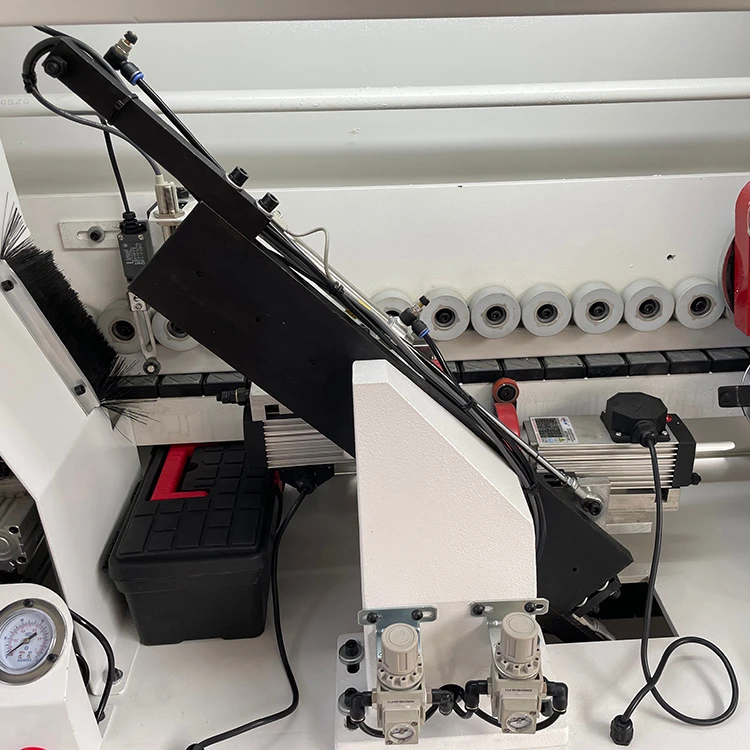

Fine trimming & Scraping
Type B has no scraping function
Circuit display

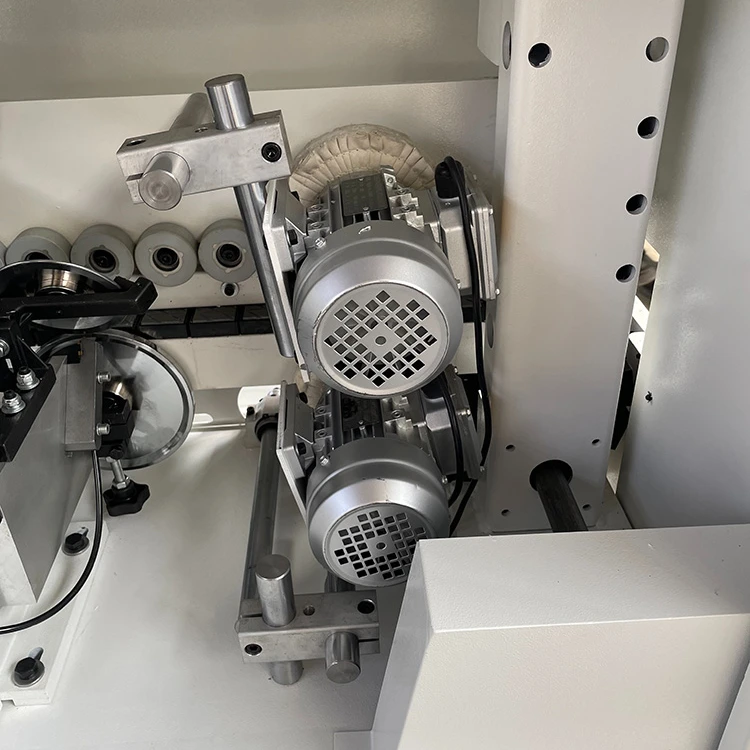

Buffing
