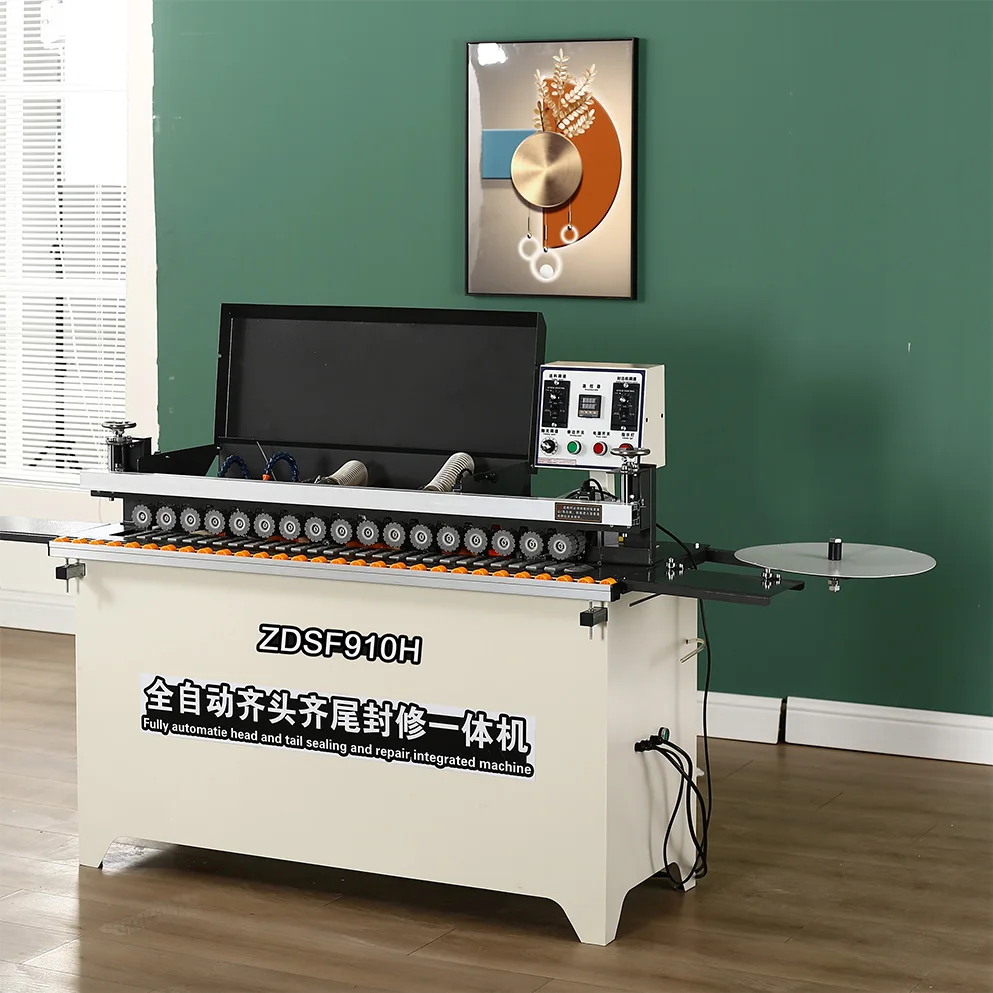

Automatic Double-Sided Gluing Small Mdf Curved Edge Banding Machine Trimmer Woodworking Edge Bander
Contact Us| model number | ZDSF910 |
|---|
Description
Products Disply
Product Paramenters
Name | Small automatic edge banding machine |
Model | 910H |
Function | automatic plate feeding. double-sided gluing. upper and lower polishing. automatic head and tail trimming. Curved and straight edgebanding |
Edge type | Both curved and straight lines |
Voltage | 220v50hz |
Rated power | 4kw |
Rated air pressure | 0.4-0.6mpa |
Suction | 1200w |
Belt power | 25w |
Transmission power | 120w |
Heating power | 800w |
Polishing power | 180w*2 |
Trimming power | 800w*2 |
Sheet thickness | 10-50mm |
Strip thickness | 0.5-2.5mm |
Glue capacity | 1000ml |
Overall size | 1300*560*1090mm |
Packing size | 138*58*120cm |
Weight | 140kg |
Weight | 120kg |
Product details
Control panel. multi-function button operation. save worry and effort.

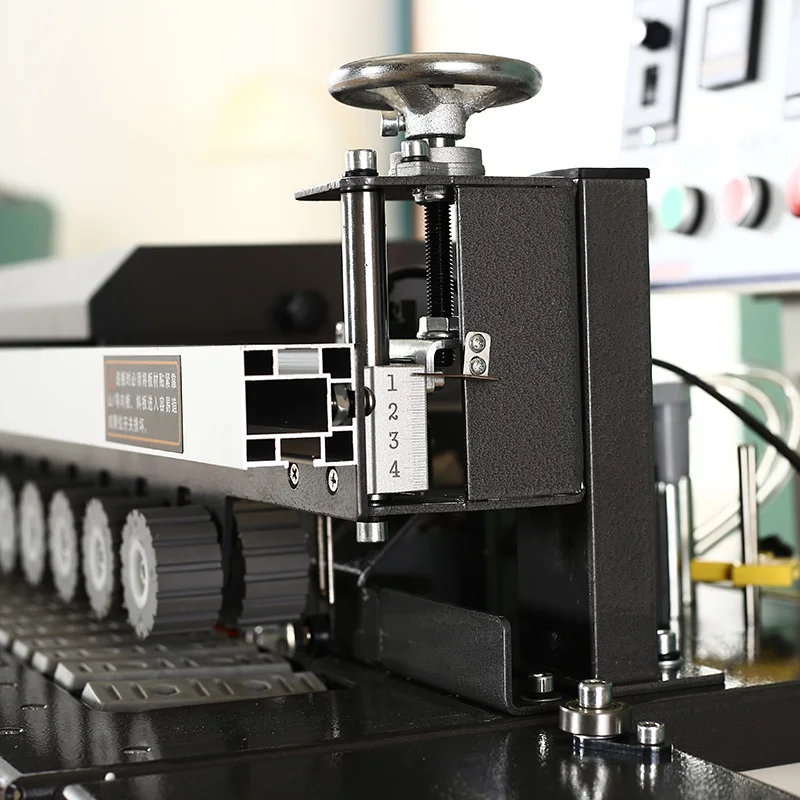

The aluminum alloy pressure beam can be adjusted. and the plate conveying is more stable.
It can be used for straight edge banding. and can be used for curved edge banding after rotating 180 degrees. which is powerful.

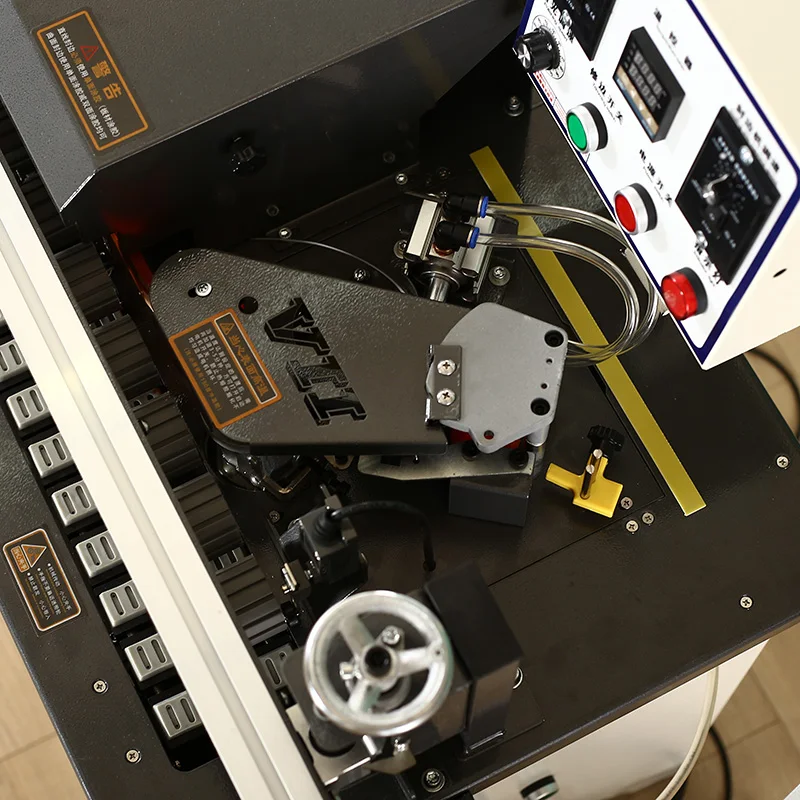

Pneumatically controlled edge strip cutting device makes work easier.
Double-row rubber pressure wheels. automatic plate feeding. large-size plates can also be transported stably.
2 high-speed trimming motors. combined with a large-diameter vacuum device. trims the edges beautifully and cleanly.
Glue roller. adjustable glue volume.
Glue line cleaning device.
Extended feed plate. more convenient to use.
4-edge arc-shaped alloy cutter head. the arc-shaped trimming is more beautiful.

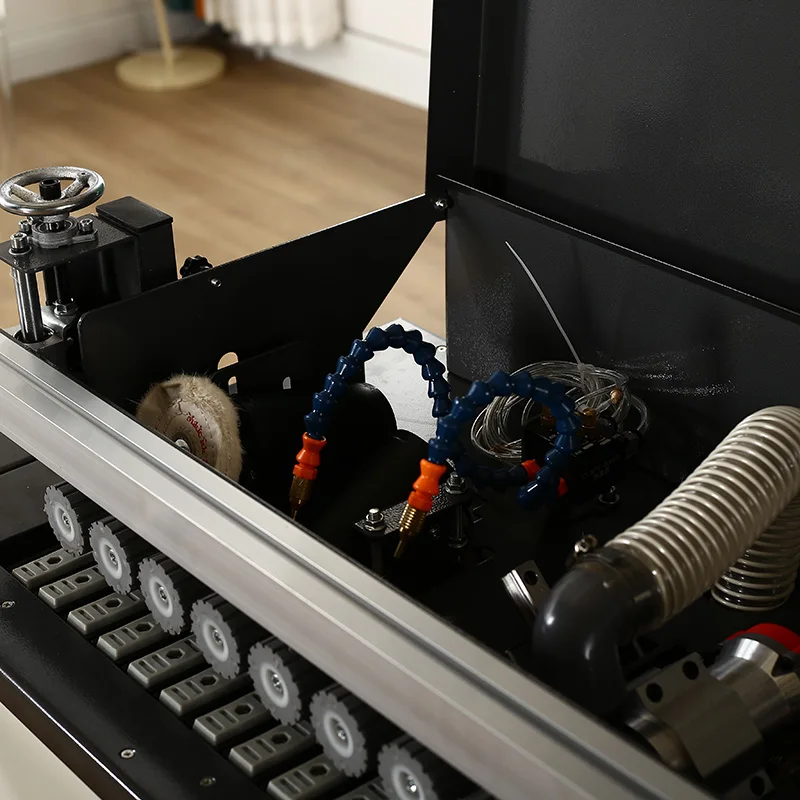

Polishing device. cross polishing up and down.
Comes with a tray for edge banding.
