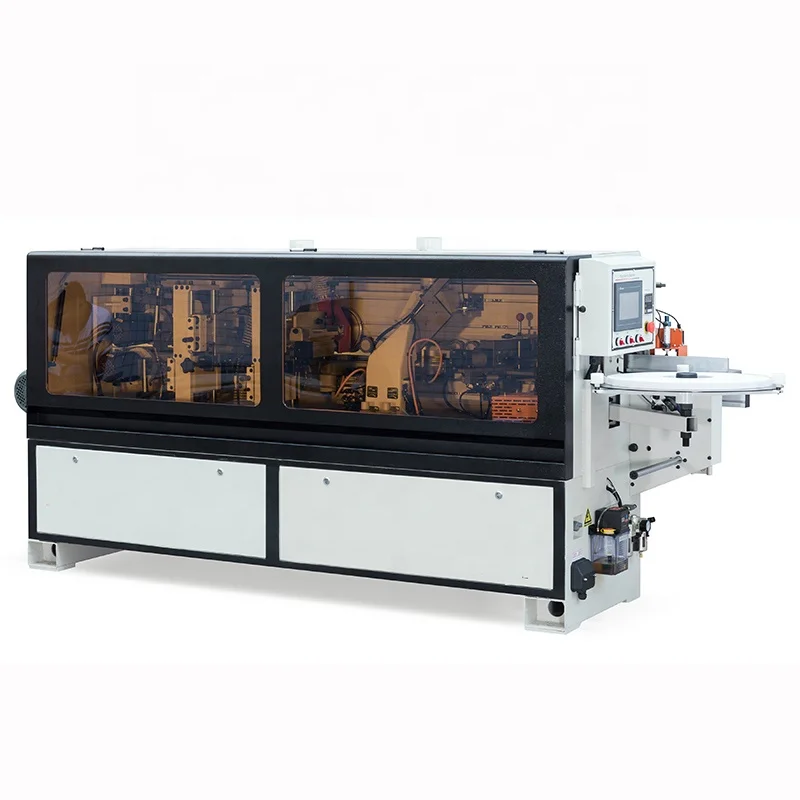

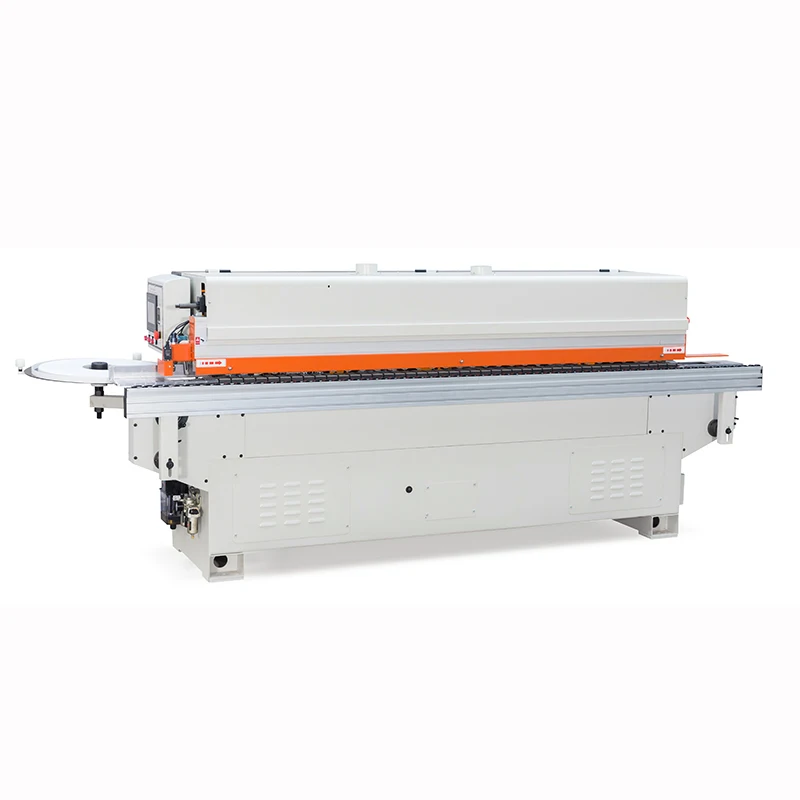

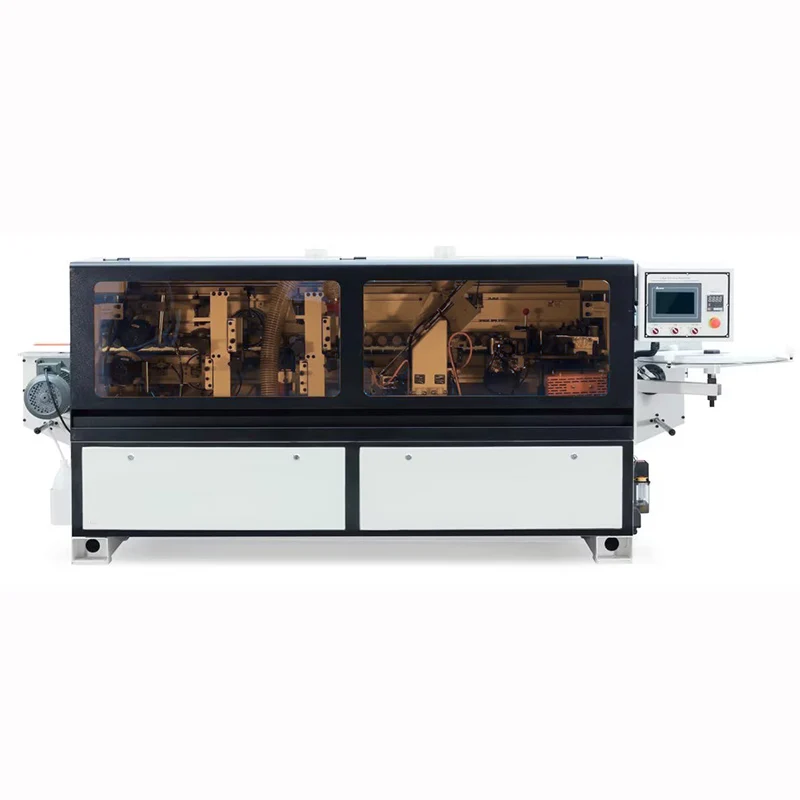

Furniture Cabinet Automatic Straight Edge Banding Machine Edge Bander Woodworking Machinery Edging Machine
Contact Us| model number | ZDS-280 |
|---|
Description
Products Disply
Model | ZDS-280 Edge Banding Machine | ||||
The main function | Gluing. End trimming. Fine trimming. Scraping. Cleaning.Buffing | ||||
Working pressure | 0.65Mpa | Voltage | 380V-3HP | ||
Conveyor belt speed | 9-12m/min | Power | 9kw | ||
Min. panel width | 60mm | Min. panel length | 120mm | ||
Panel thickness | 10-60mm | Edge thickness | 0.3-3mm | ||

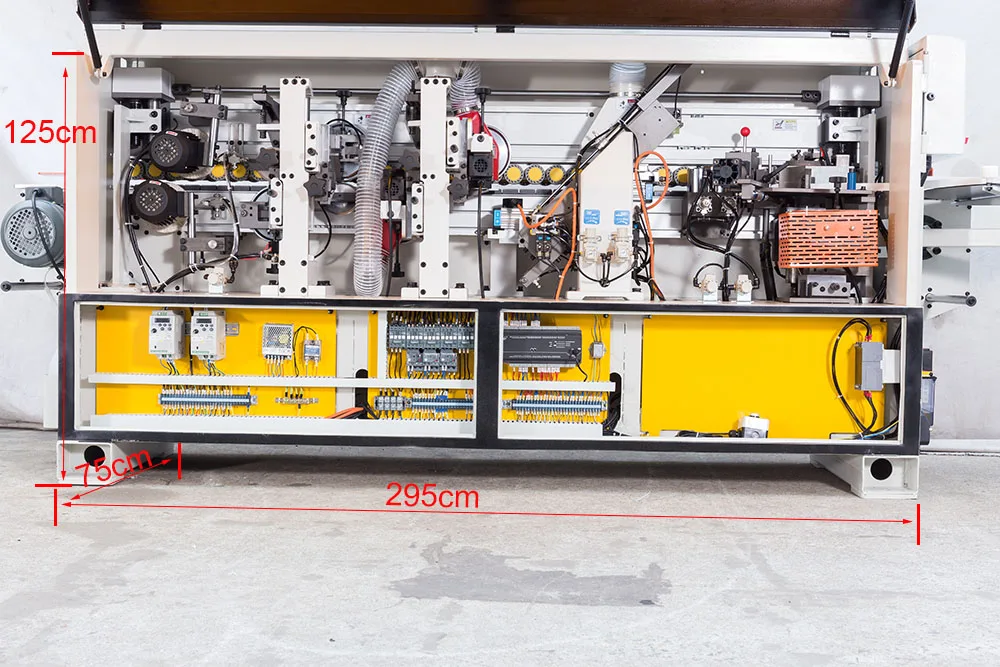

Weight | 860kg | Dimensions | 3000*750*1270mm | ||
Product details

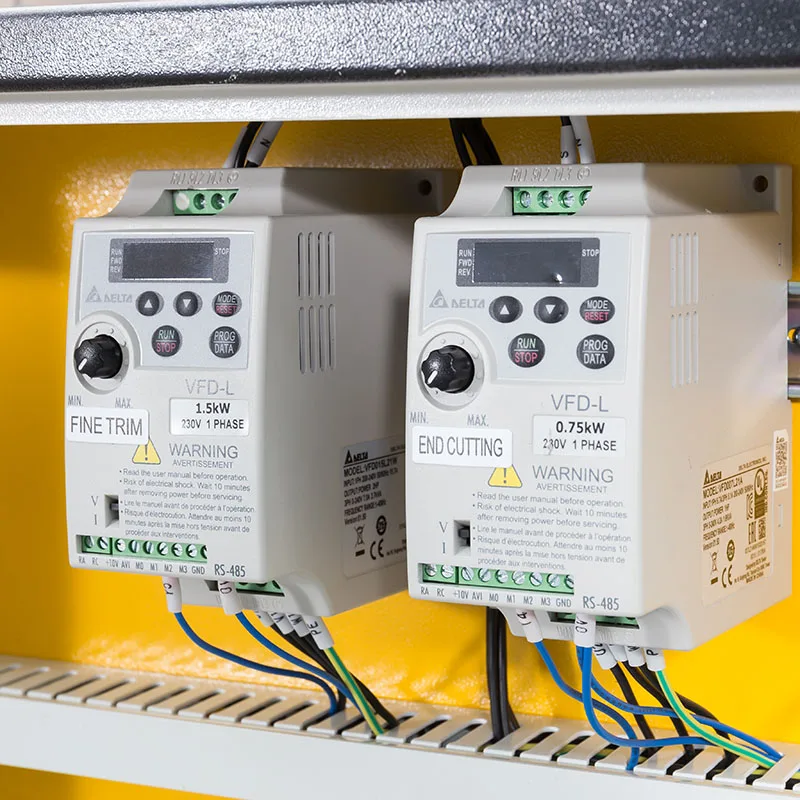

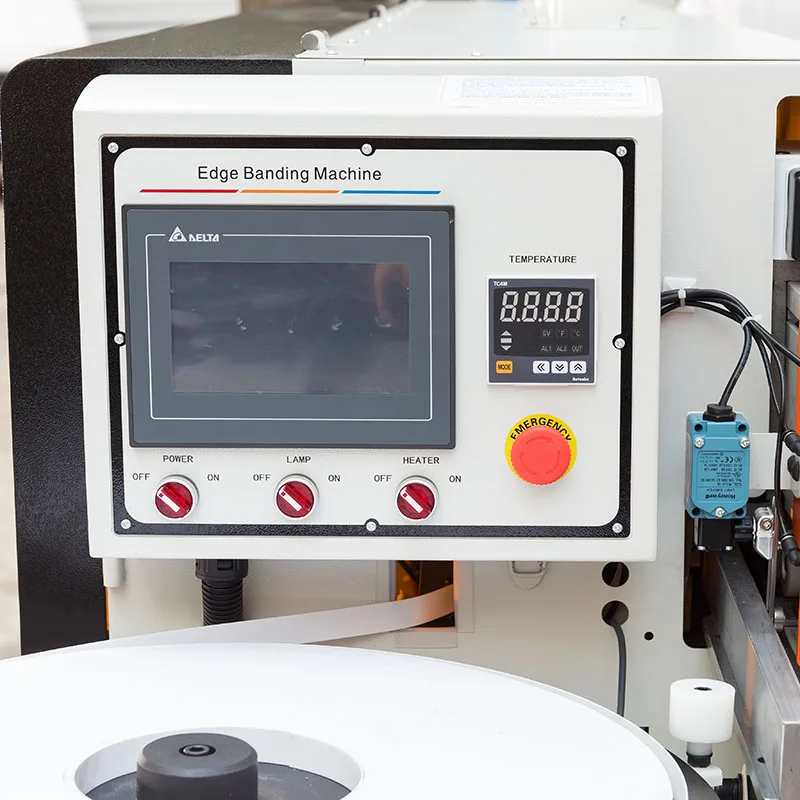

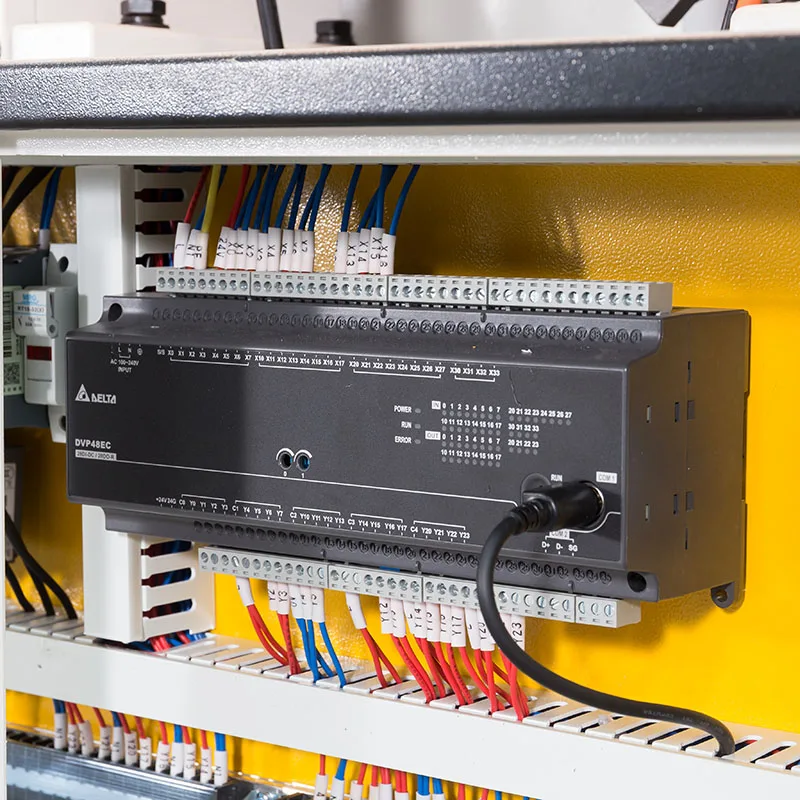

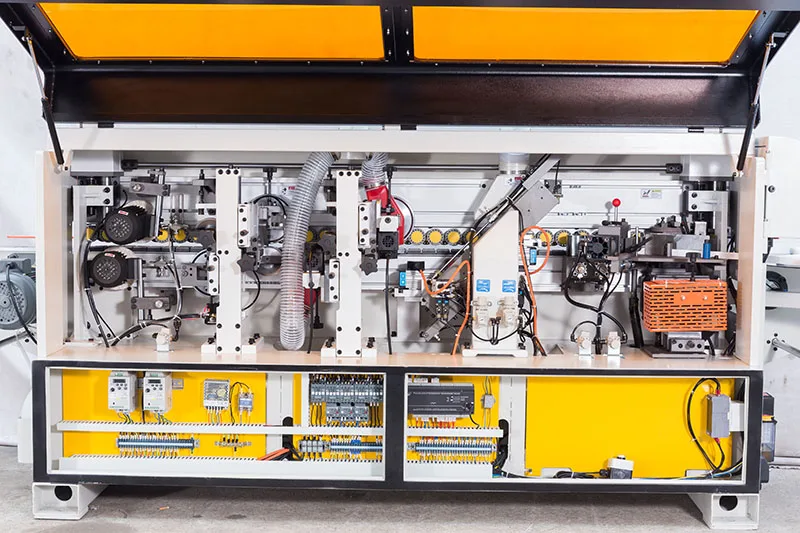

The touch screen. frequency converter and PLC all adopt Taiwan Delta. which is stable in operation and easy to operate.

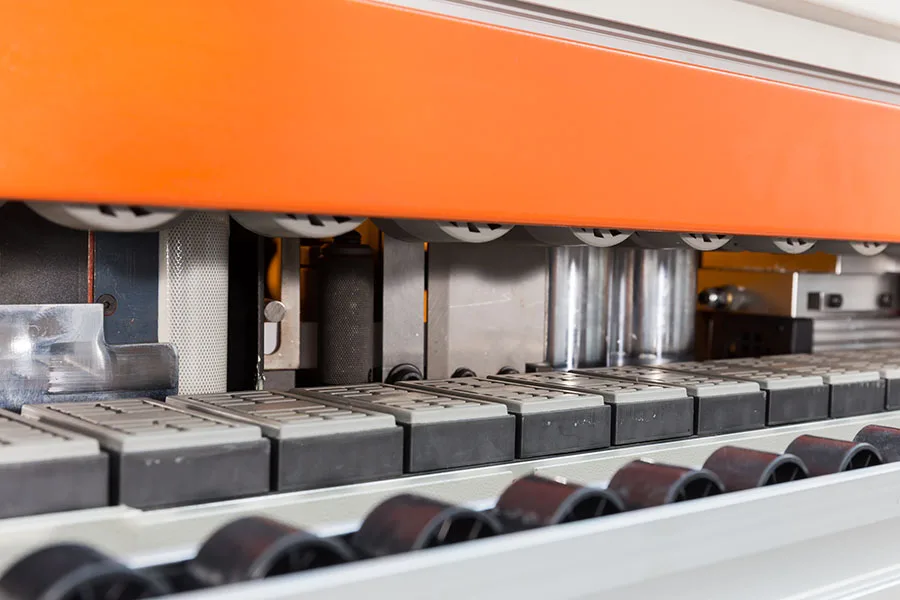

Gluing
It adopts Teflon spraying process and scientific glue back design. It can make the temperature of the glue in the glue pot uniform without carbonization. and maintain good fluidity.

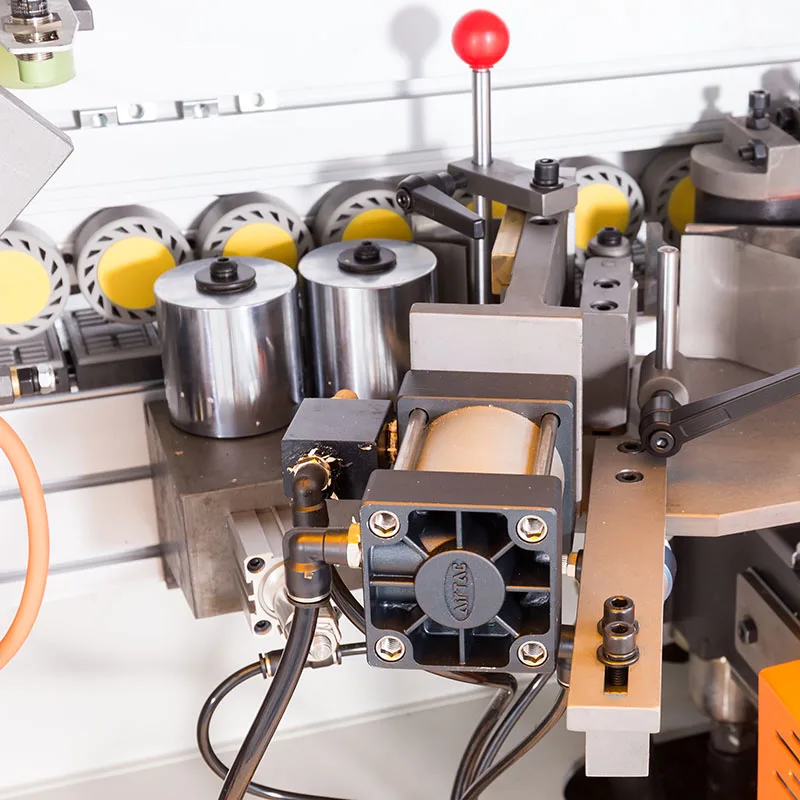

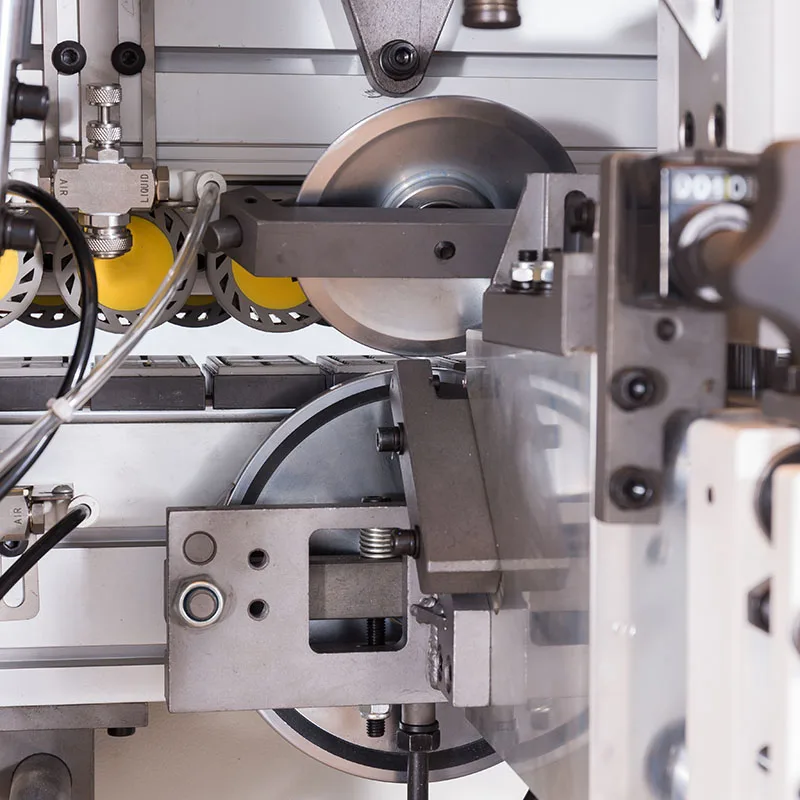

Pressing
The pneumatic design with double-wheel adjustable stroke makes the pressure adjustment easier. It can be adjusted according to the thickness of the edge banding. Improved bonding properties of glue and sidebands.

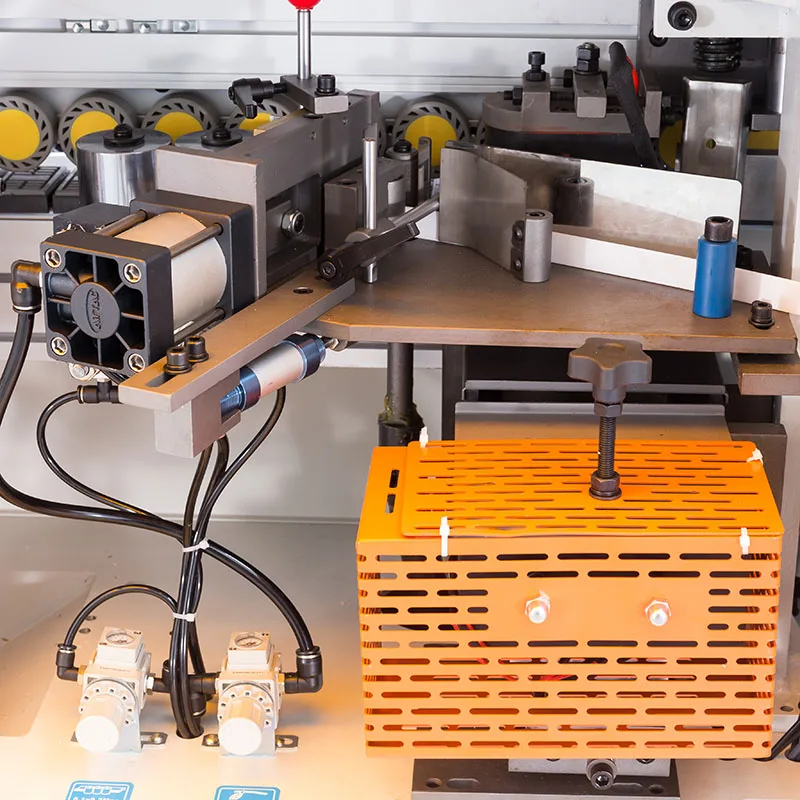

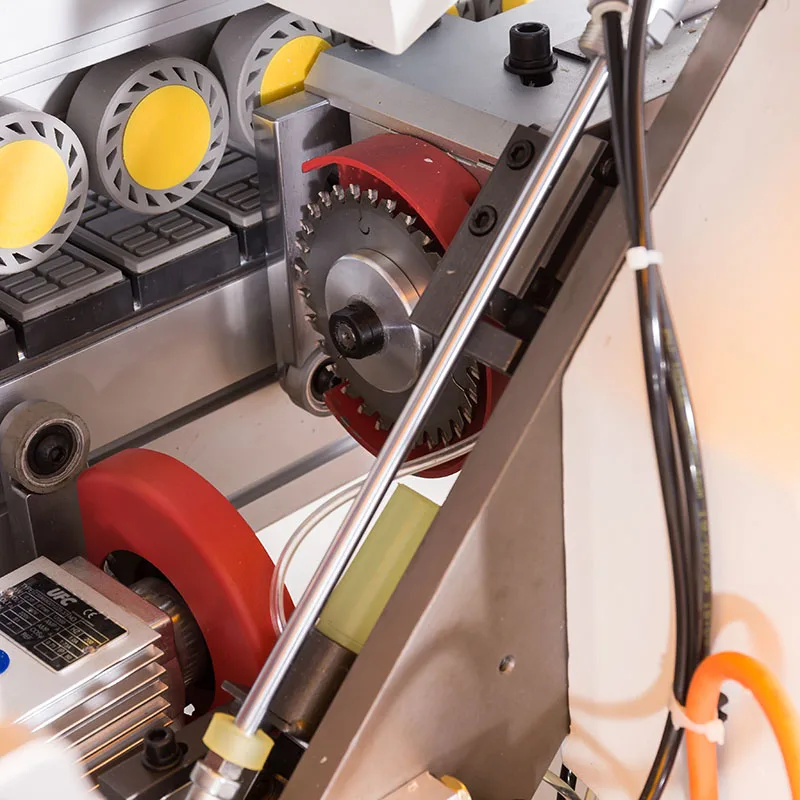

End Trimming
The air pressure balance device is adopted. which is more stable and easier to adjust. And optimize the gas path design. reduce the noise. and improve the efficiency of the equipment.

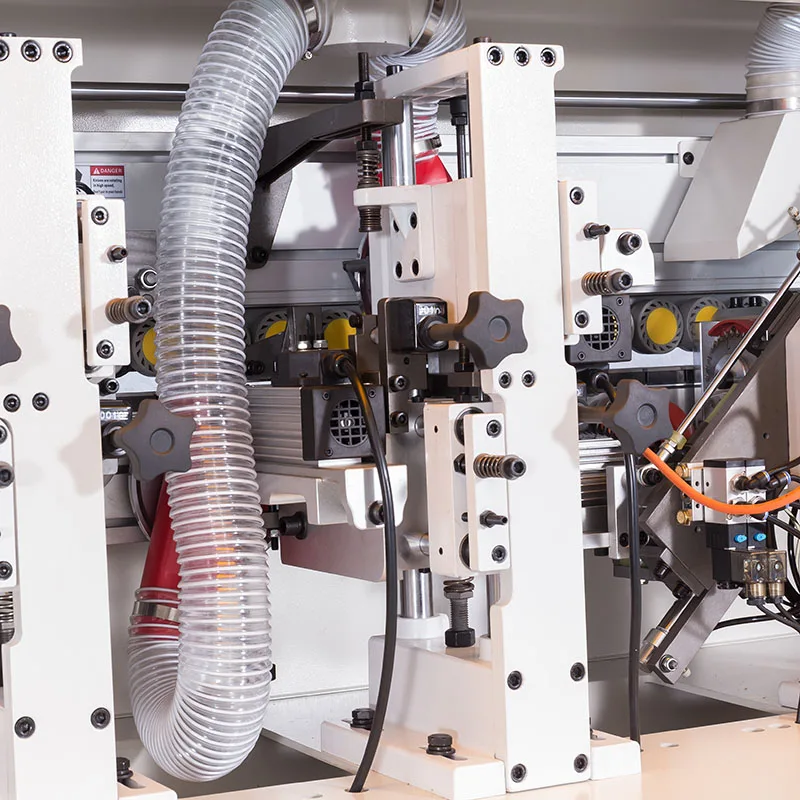

Fine Trimming
The stable frame design reduces the vibration of the tool during high-speed cutting. The design of the cutting edge is optimized to make the workpiece more perfect after edge sealing.
Scraping
Small and compact edge scraping. solve the problem of uneven trimming. At the same time. trim the excess sideband to make the sideband more beautiful.

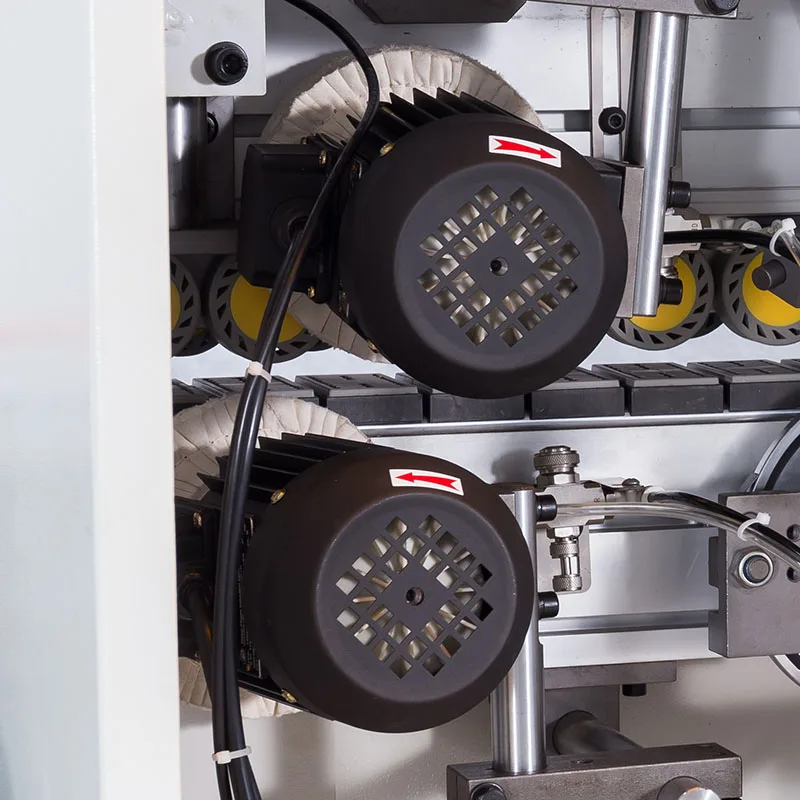

Buffing
Up and down polishing. motor 0.37kw*2.

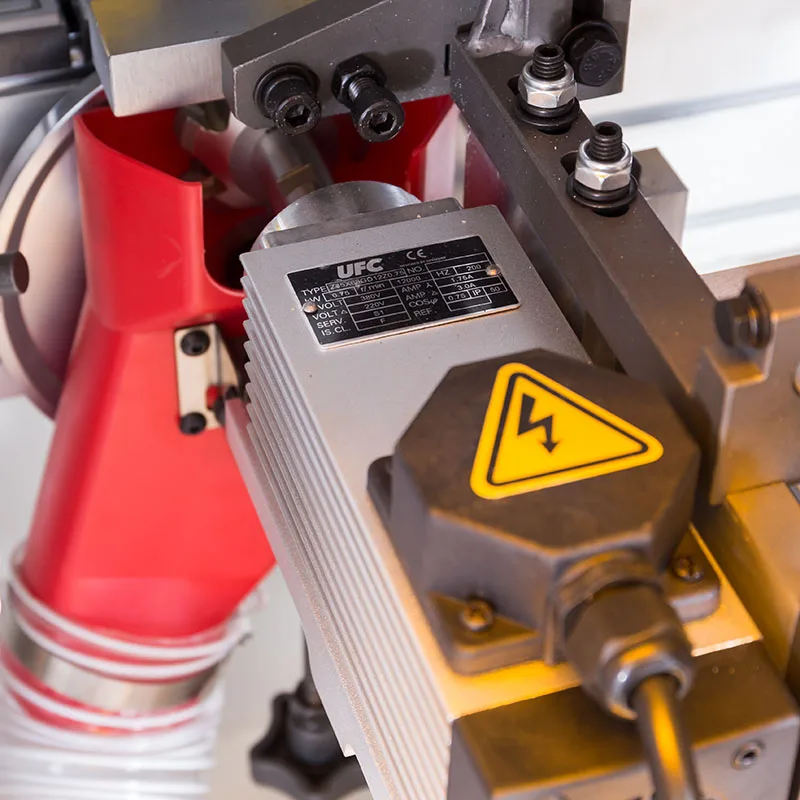

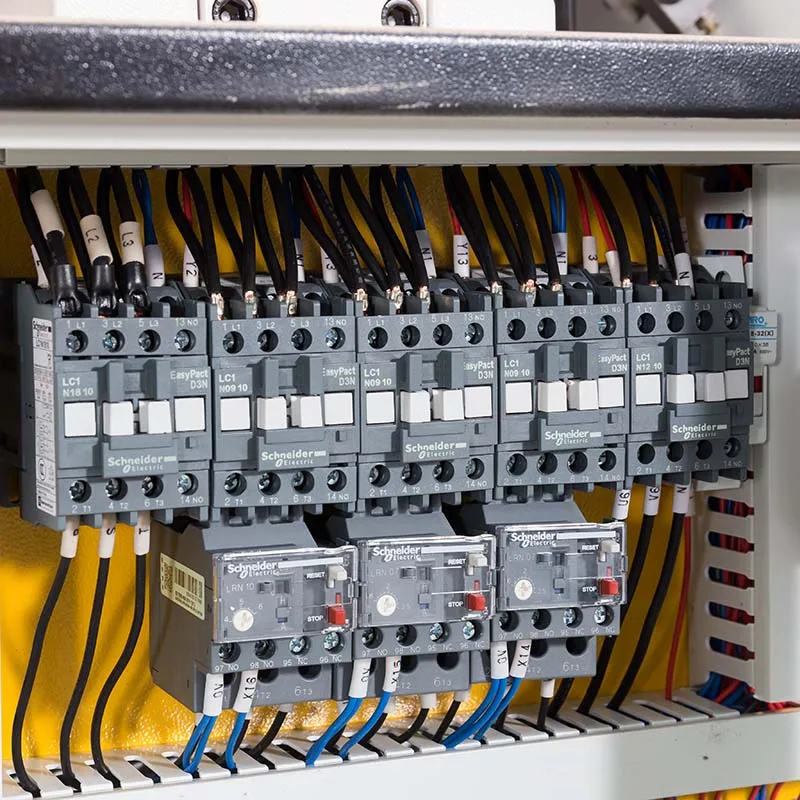

Contactors produced by Schneider Electric. UFC high speed motor
